Rear Side Door Window Regulator Replacement

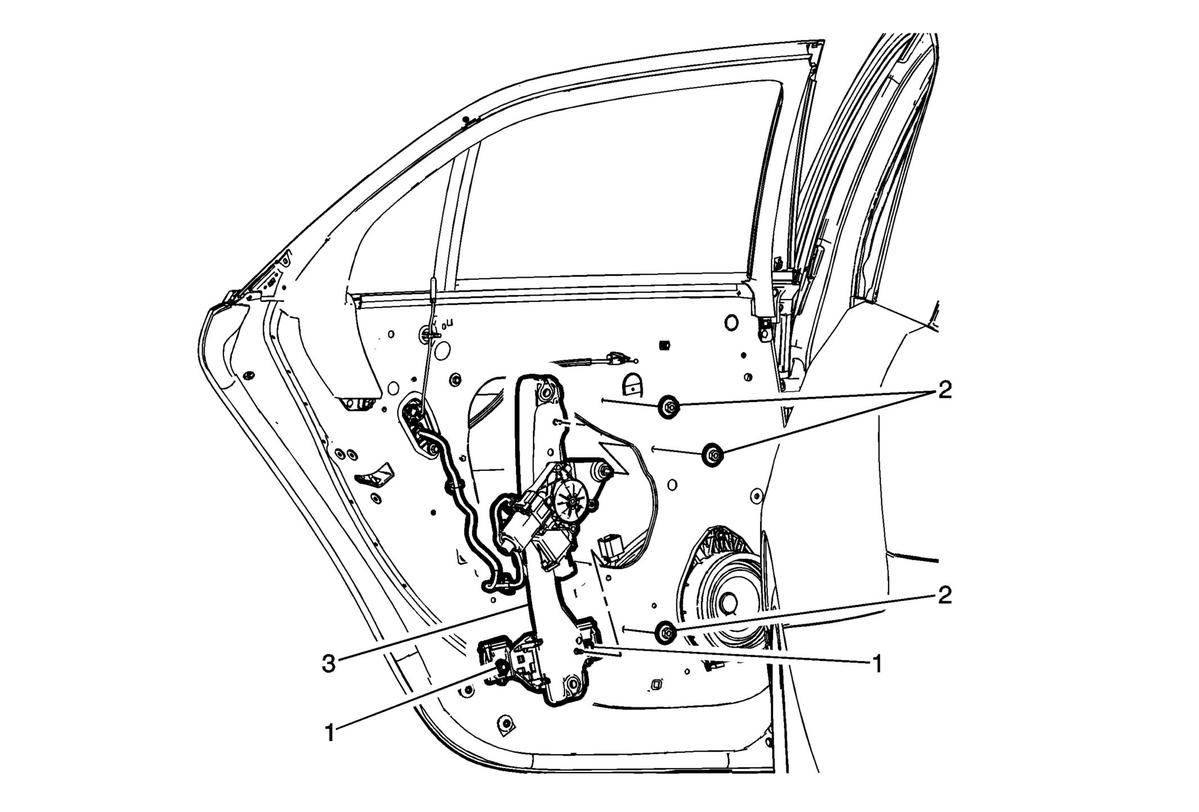

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door arm rest plate bolts and plate from the inner door panel. Remove the water deflector.
1	Rear Side Door Window Regulator Guide Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Position the window to access the window regulator guide bolts. Place the window in the full up position and tape in place. Tighten 10.5 N.m (93 lb in)
2	Rear Side Door Window Regulator Nut (Qty: 3) Procedure Disconnect the electrical connector. Tighten 11.5 N.m (102 lb in)
3	Rear Side Door Window Regulator Procedure Transfer the window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement . NOTE: Inspect the door window for proper operation before installing the door trim.
