FixVault
Home
›
Cadillac
›
2018
›
CTS Base, AWD
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Fixed And MOVEABLE Window System
›
Schematic Wiring Diagrams
›
Defogger Wiring Schematics
›
Defogger

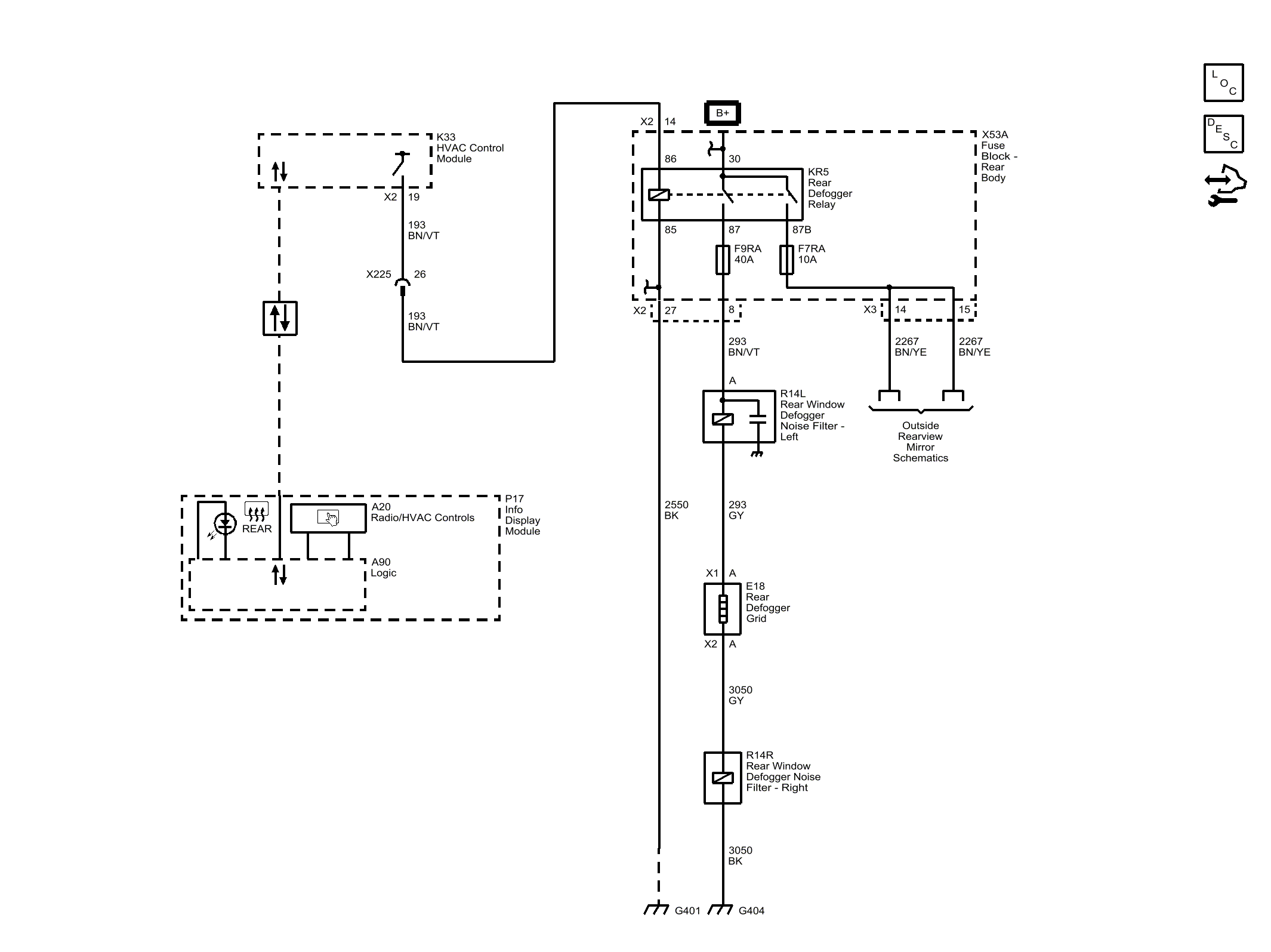

Defogger Wiring Schematics: Defogger
