Intermediate Body Exhaust Heat Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

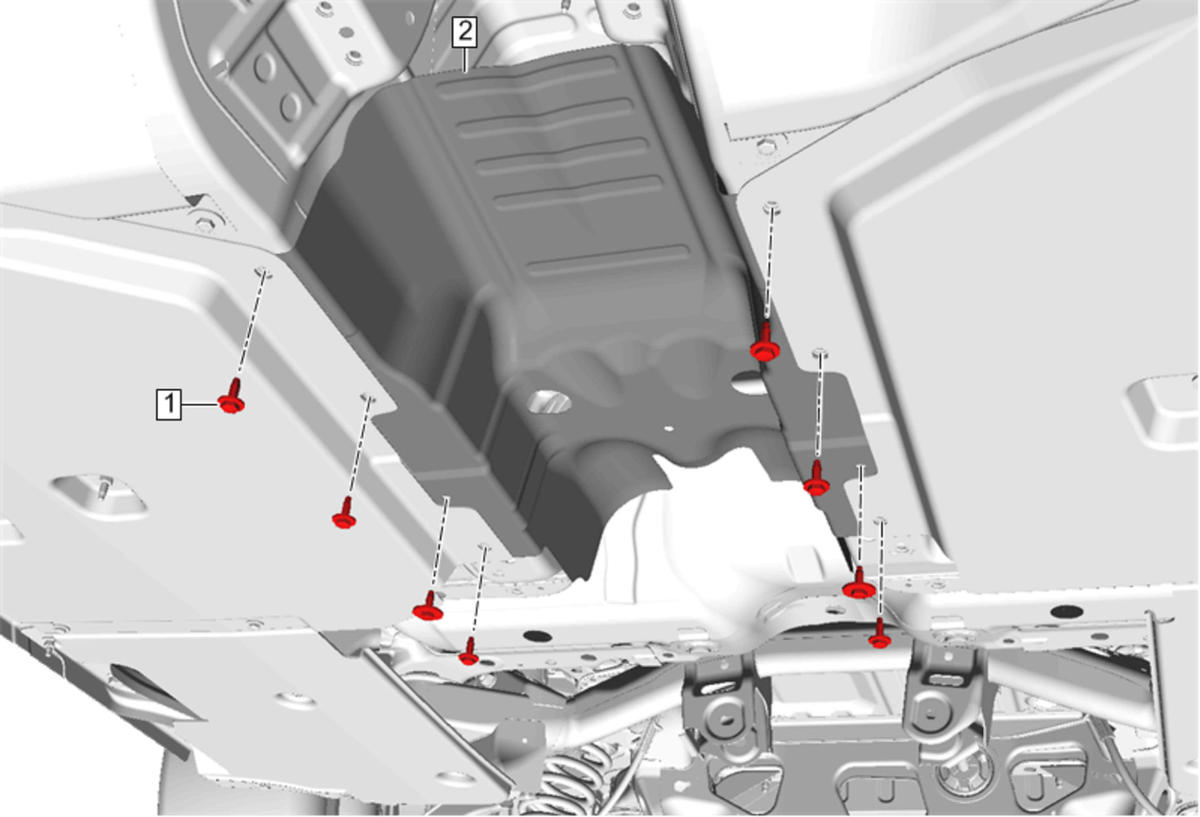

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . WARNING: Refer to Eye Protection Warning . Preliminary Procedure Lower the muffler. Refer to Exhaust Muffler Replacement (LT4) Exhaust Muffler Replacement (LTG) , or Exhaust System Replacement (LF3, LGX) .
1	Intermediate Body Exhaust Heat Shield Fastener [8x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Intermediate Body Exhaust Heat Shield
