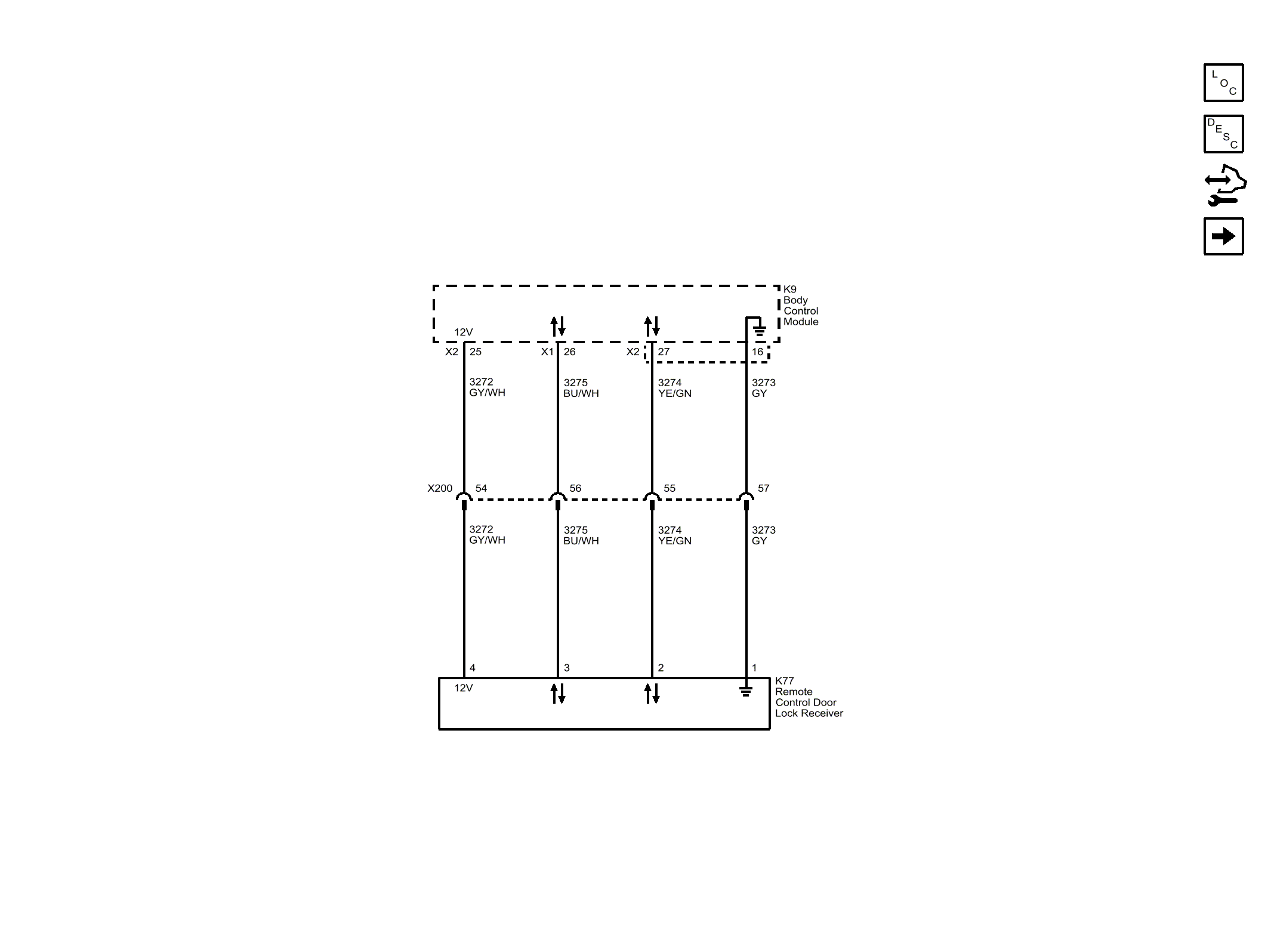

Home › Cadillac › 2018 › XT5 Base, FWD › Repair and Diagnosis › Body & Frame › Door Locks › Keyless Entry System And Remote Functions › Schematic and Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
