Installation Procedure

  1. Connect the electrical connector.

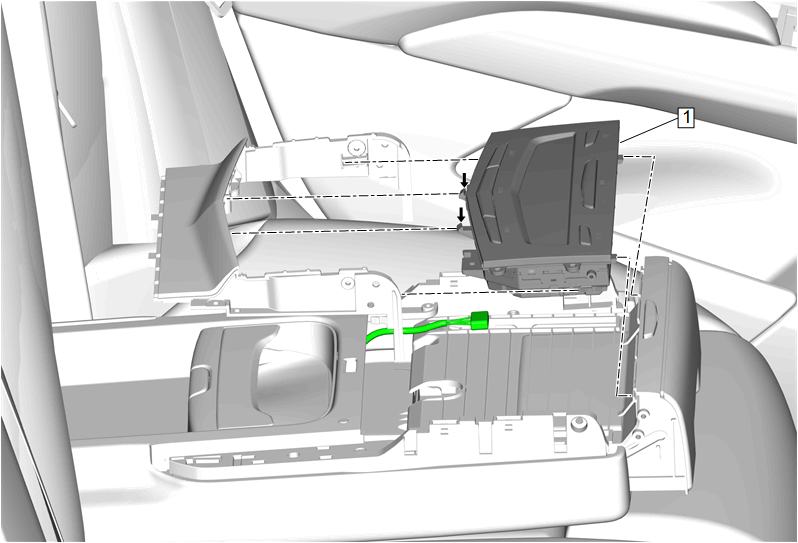

  2. GM5156952Courtesy of GENERAL MOTORS COMPANY

    Audio Rear Control (1) - Install

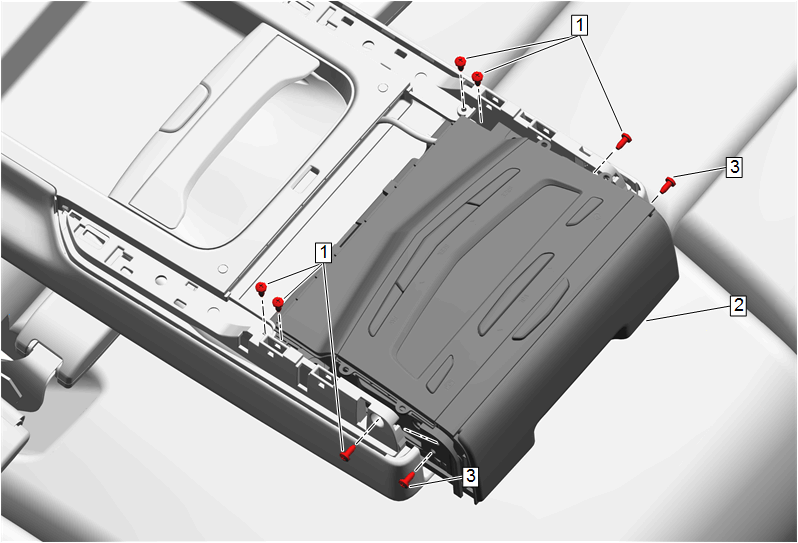

  3. GM5156950Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Fastener Caution

    Rear Seat Armrest Cup Holder Bolt (3) - Install and tighten [2x] 2.5N.m (22 lb in)

  4. Rear Seat Armrest Cup Holder (2) - Install
  5. Rear Seat Armrest Cup Holder Bolt (1) - Install and tighten [6x] 2.5N.m (22 lb in)

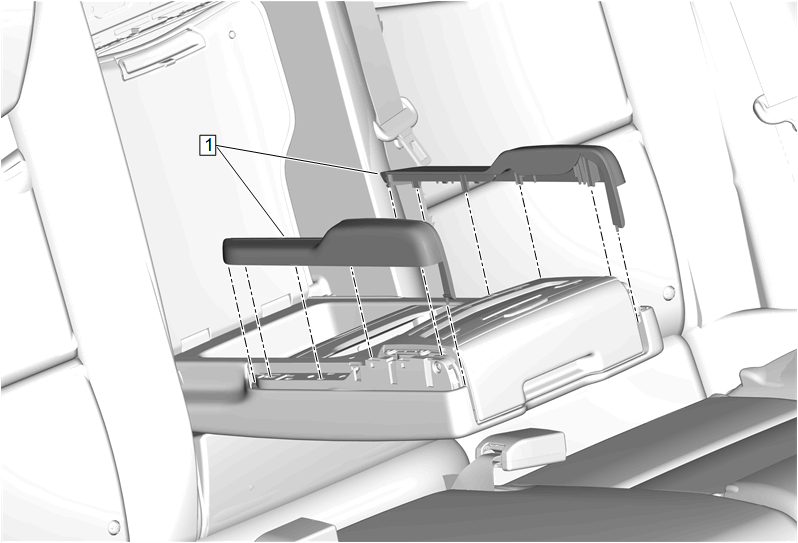

  6. GM5156944Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Armrest Side Trim Panel (1) - Install
