Communication Interface Module Battery Replacement

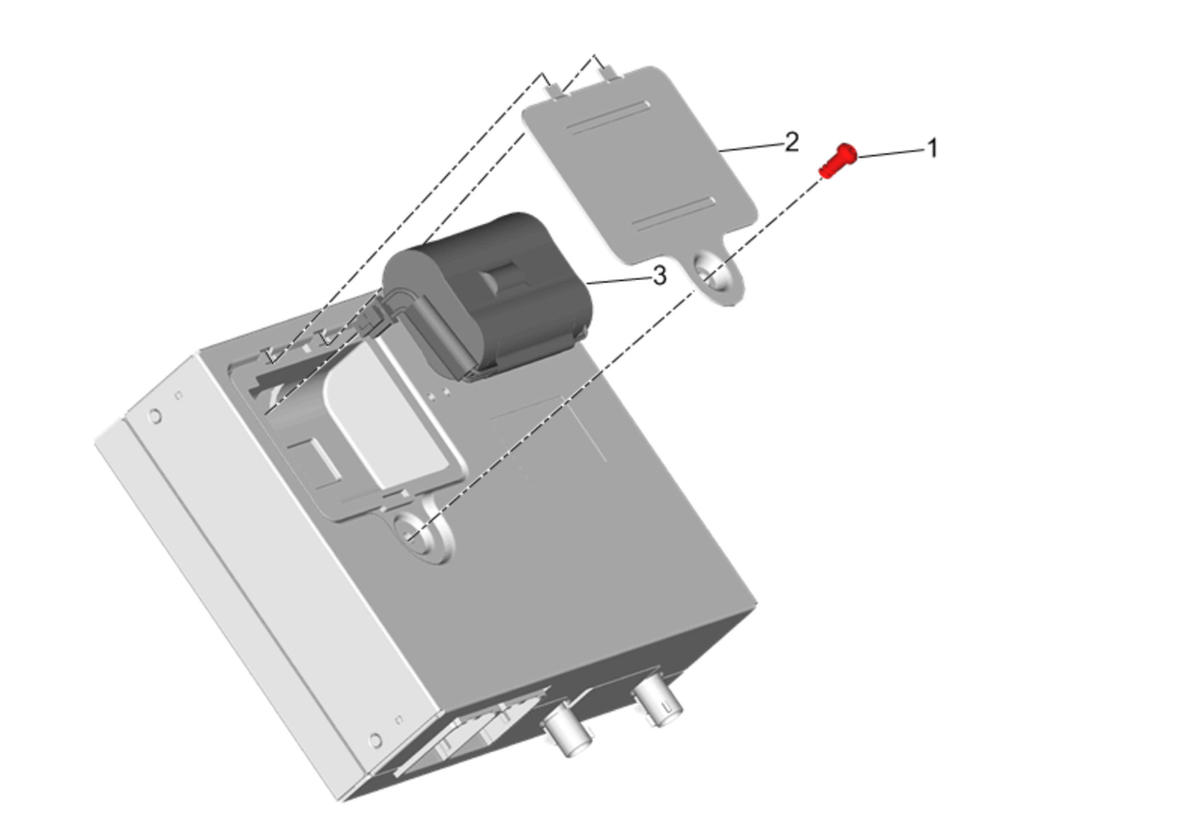

Fig 1: Exploded View Of Communication Interface Module Battery Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Communication Interface Module Replacement
1	Communication Interface Module Battery Cover Bolt CAUTION: Fastener Caution Tighten  2.5N.m (22 lb in)
2	Communication Interface Module Battery Cover
3	Communication Interface Module Battery
