Intake Air Baffle Replacement

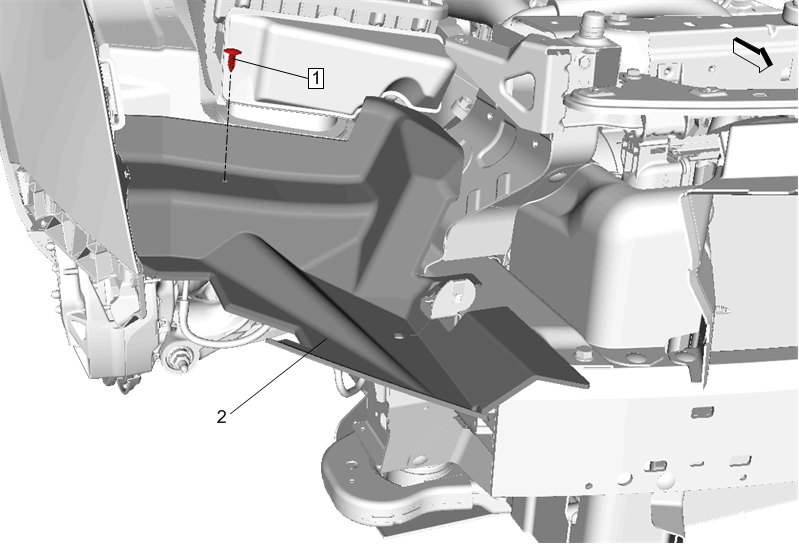

GM4794285Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Headlamp Replacement
1 Intake Air Baffle Retainer
2 Intake Air Baffle
