Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

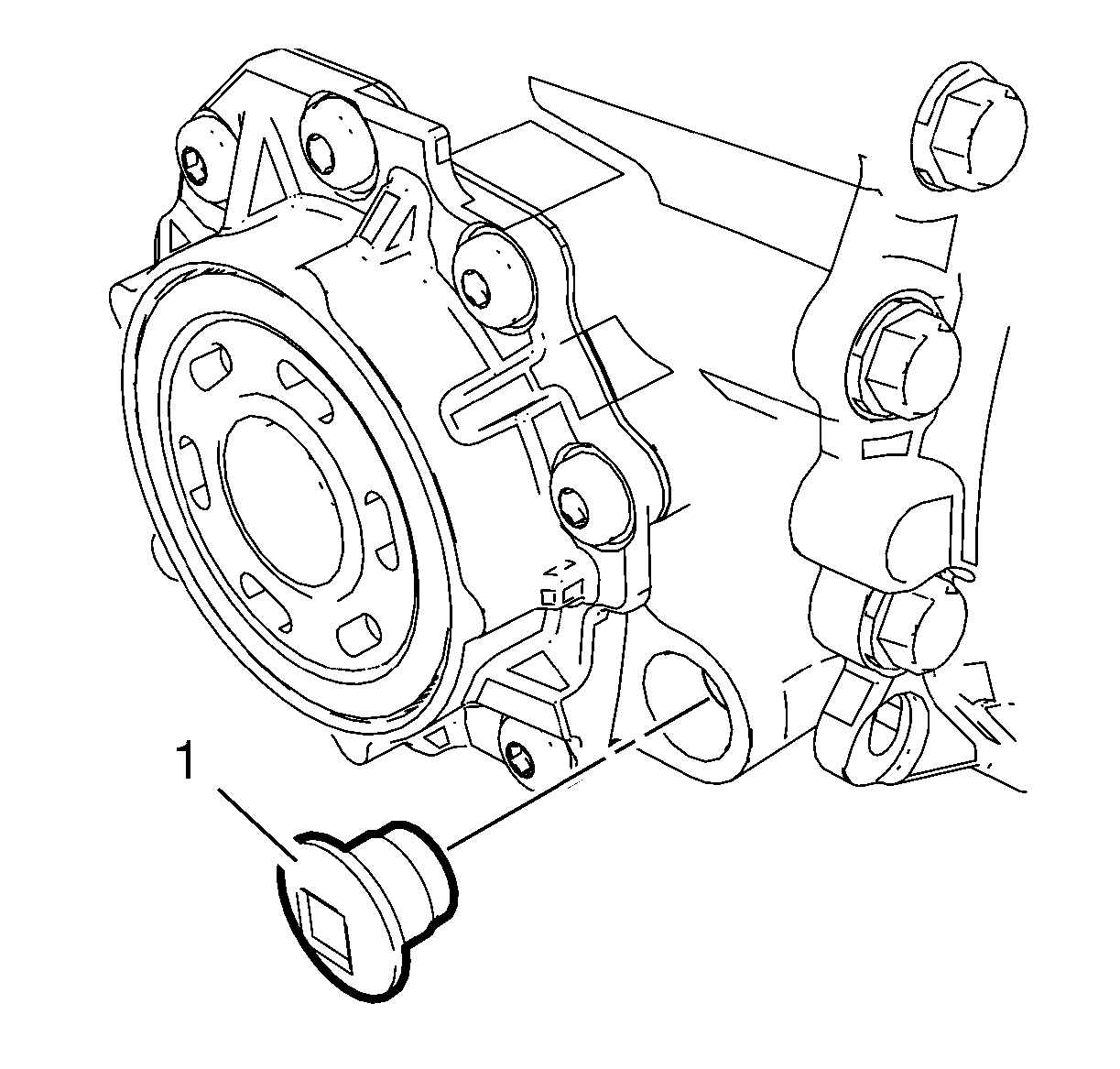

Install a NEW drain plug (1) and seal and tighten to 40 N.m (30 lb ft).
Fill the transfer case with the recommended amount of fluid. Approximate Fluid Capacities
Courtesy of GENERAL MOTORS COMPANY

Install a NEW fill plug (1) and seal and tighten to 40 N.m (30 lb ft).
