Accessory AC and DC Power Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

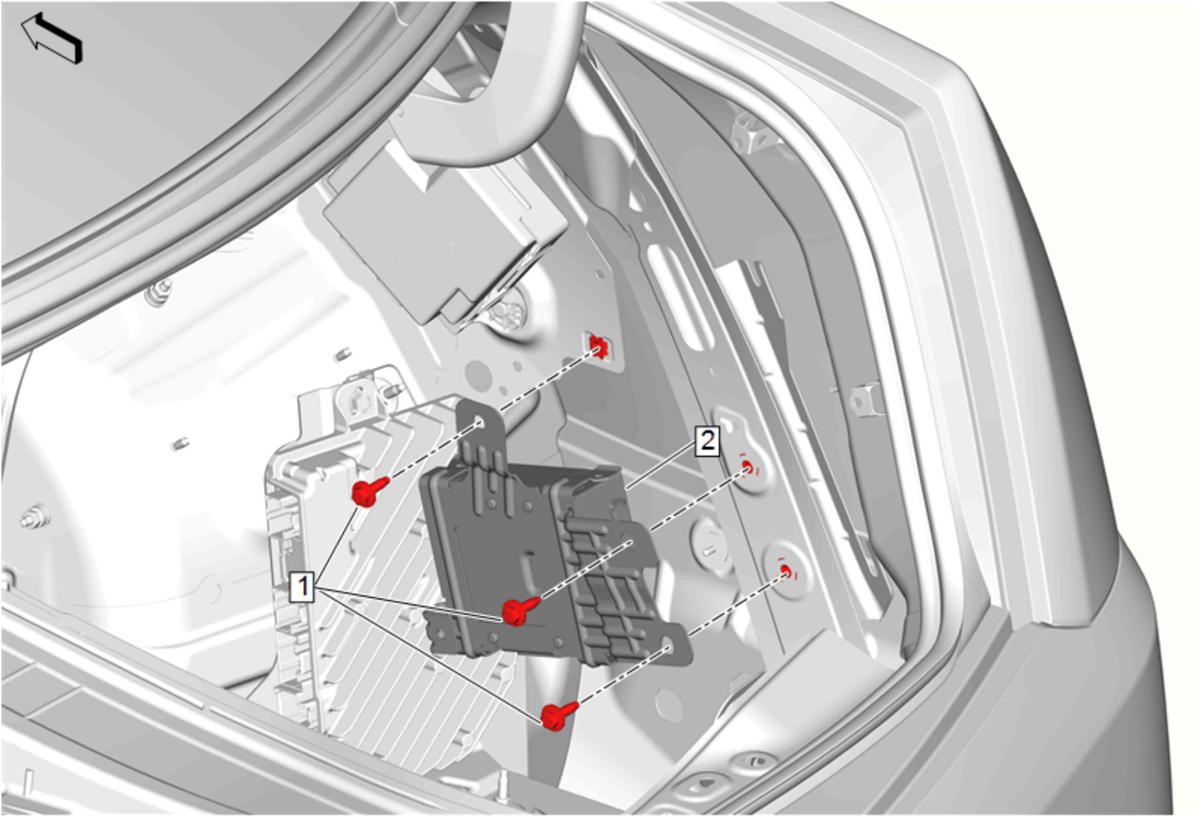

Callout	Component Name
Preliminary Procedure  Rear Compartment Side Trim Replacement - Right Side
1	Accessory AC and DC Power Control Module Bolt [3x] CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Accessory AC and DC Power Control Module Procedure  Disconnect the electrical connector.
