Installation Procedure

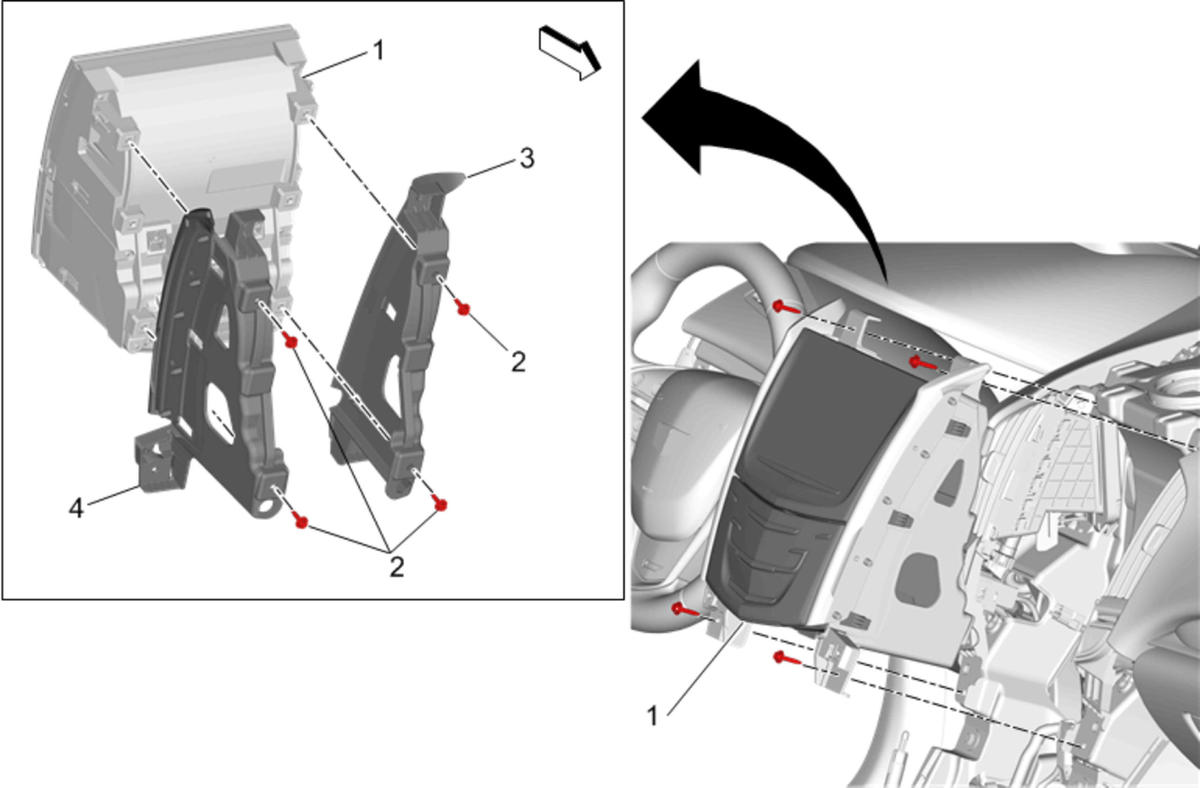

  1. GM4032727Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique - Right Side (4) - Install - Instrument Panel Lower Center Trim Plate Applique Replacement

  2. Instrument Panel Lower Center Trim Plate Applique - Left Side (3) - Install - Instrument Panel Lower Center Trim Plate Applique Replacement

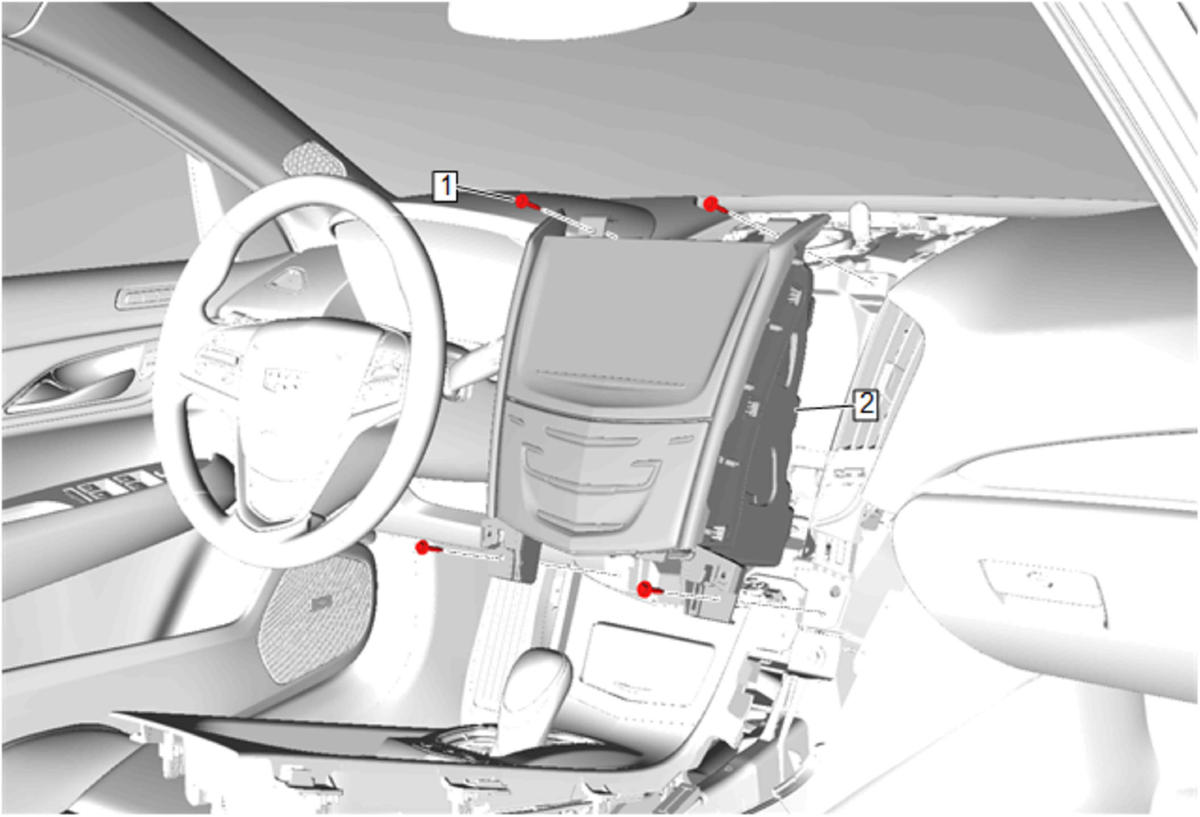

  3. GM5338651Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install

    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Accessory Center Trim Plate Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

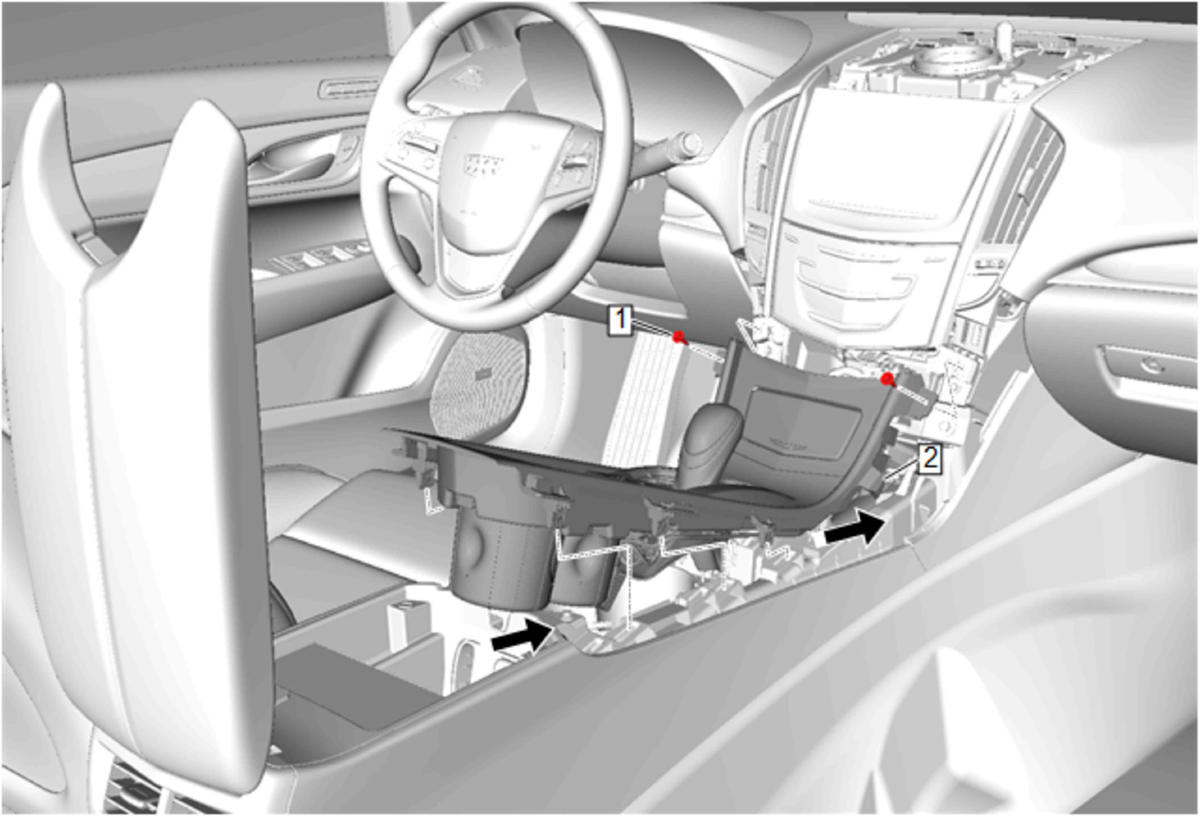

  5. GM5338743Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate (2) - Install

  6. Front Floor Console Trim Plate Bolt (1) - Install and tighten [2x] - Front Floor Console Trim Plate Replacement
  7. Front Floor Console Trim Panel - Right Side - Install - Front Floor Console Side Trim Panel Replacement - Right Side
  8. Front Floor Console Trim Panel - Left Side - Install - Front Floor Console Side Trim Panel Replacement - Left Side
  9. Place the gear selector lever in Park.
  10. Turn the ignition off.
  11. Radio Front Center Speaker Grille - Install - Radio Front Center Speaker Grille Replacement
