Removal Procedure
- Radio Front Center Speaker Grille - Remove - Radio Front Center Speaker Grille Replacement
- Apply the parking brake.
- Turn the ignition on, but DO NOT start the engine.
- Place the gear selector lever in Drive.
- Front Floor Console Trim Panel - Left Side - Remove - Front Floor Console Side Trim Panel Replacement - Left Side
- Front Floor Console Trim Panel - Right Side - Remove - Front Floor Console Side Trim Panel Replacement - Right Side

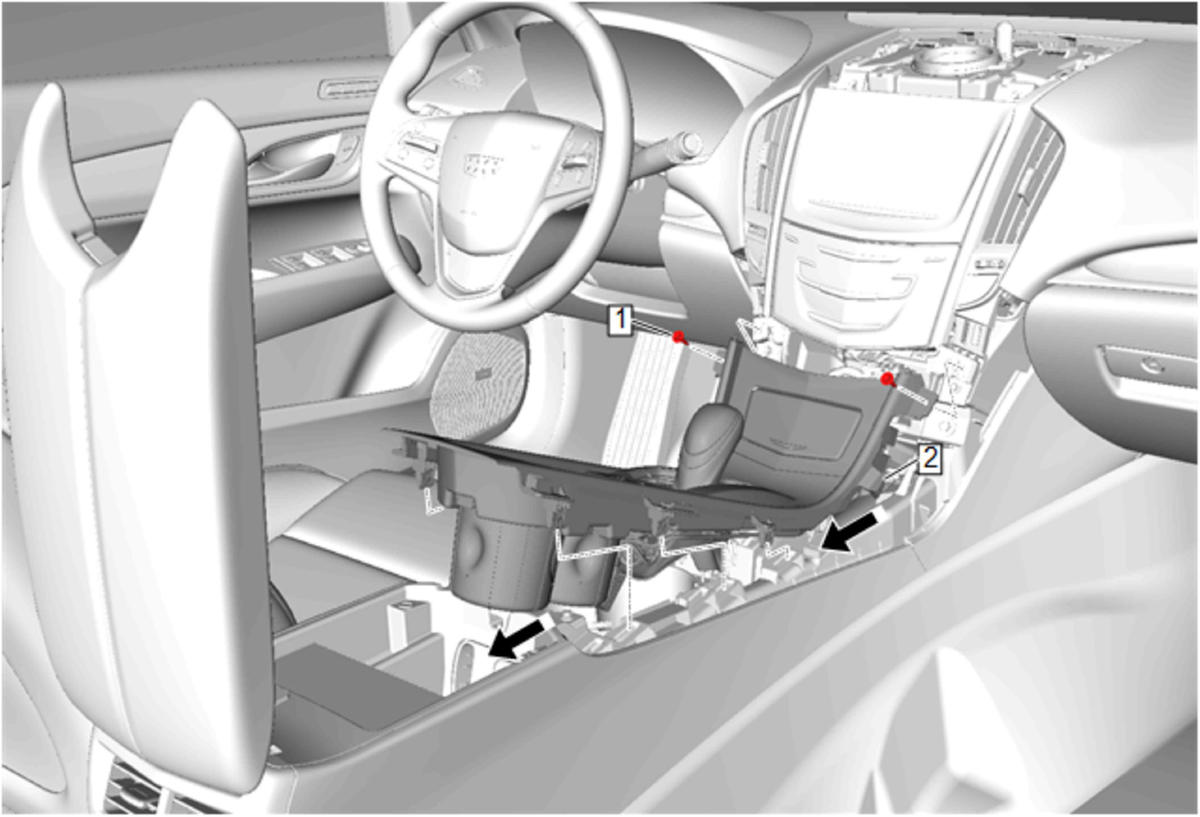

Front Floor Console Trim Plate Bolt (1) - Remove [2x]
- Gently pull upwards on the front floor console trim plate (2) to release the front floor console trim plate retainers.
- Reposition the front floor console trim plate (2) rearwards to access the 2 lower instrument panel accessory center trim plate bolts.
Instrument Panel Accessory Center Trim Plate Bolt (1) - Remove [4x]
- Radio Control (2) - Remove
Instrument Panel Lower Center Trim Plate Applique - Left Side (3) - Remove - Instrument Panel Lower Center Trim Plate Applique Replacement
- Instrument Panel Lower Center Trim Plate Applique - Right Side (4) - Remove - Instrument Panel Lower Center Trim Plate Applique Replacement
NOTE:
The front floor console trim plate (2) does not need to be completely removed, only repositioned rearward.
