Front Side Door Lock Cylinder Bezel Replacement

Courtesy of GENERAL MOTORS COMPANY

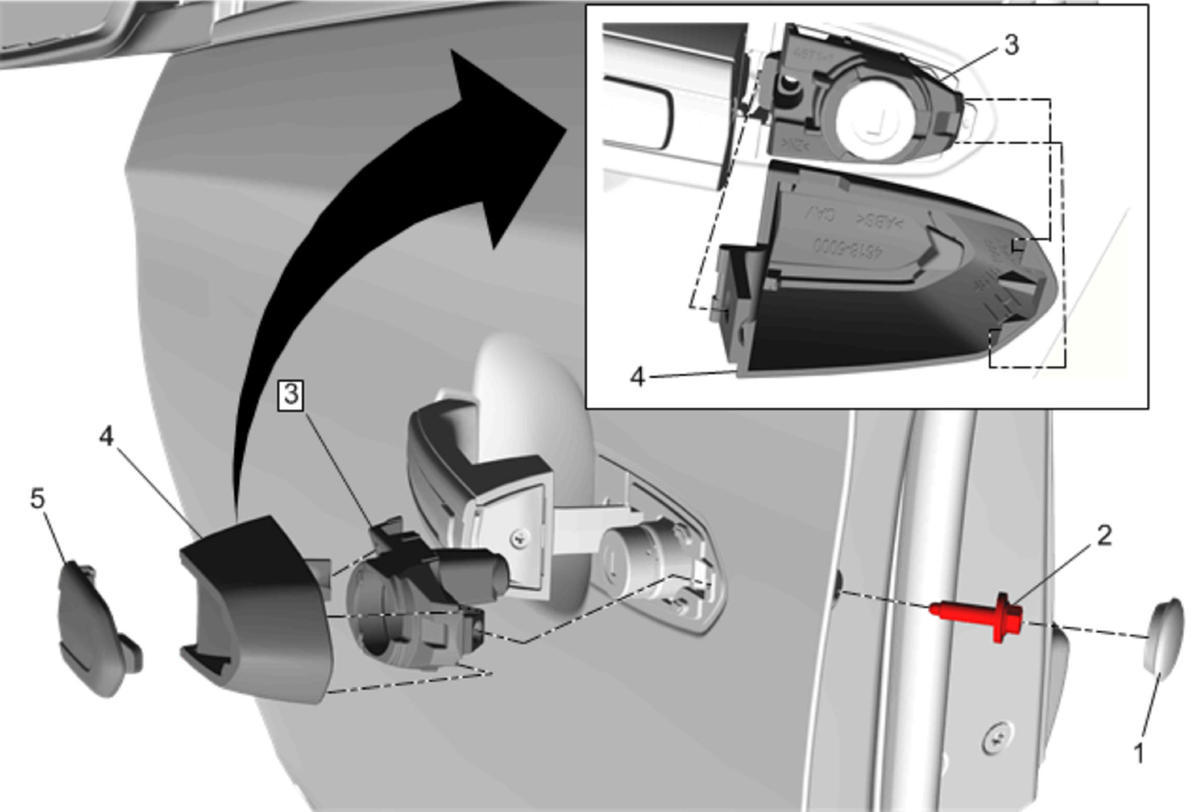

Callout	Component Name
1	Front Side Door Access Hole Plug Procedure Using the appropriate tool, remove the cap that conceals the screw from the inside of the door opening.
2	Front Side Door Outside Handle Lock Cylinder Bezel Screw CAUTION: Refer to Fastener Caution . NOTE: USE HAND TOOL ONLY. Using a battery operated gun or power tool can BREAK the component. Around 7 rotations is enough to allow the Bezel to be removed. Tighten 10 N.m (89 lb in)
3	Front Side Door Lock Cylinder Bezel Insulator Procedure Using the appropriate tool, remove the insulator from the door opening.
4	Front Side Door Lock Cylinder Bezel Procedure Pull the door handle out to the open position. Insert the appropriate tool into the slot on the bottom of the bezel and pry outward. Slide the bezel rearward to remove from the retainer. Slide the 2 tabs on the back side of bezel into the slots on the retainer. Slide the bezel forward and downward to snap into place. Release the door handle. NOTE: The door handle should remain in the open position while removing and installing the bezel.
5	Front Side Door Lock Bezel Cover Procedure Using the appropriate tool, push the cover insert forward, then outward to release the insert from the bezel.
