Front Seat Horizontal Adjuster Position Sensor Replacement

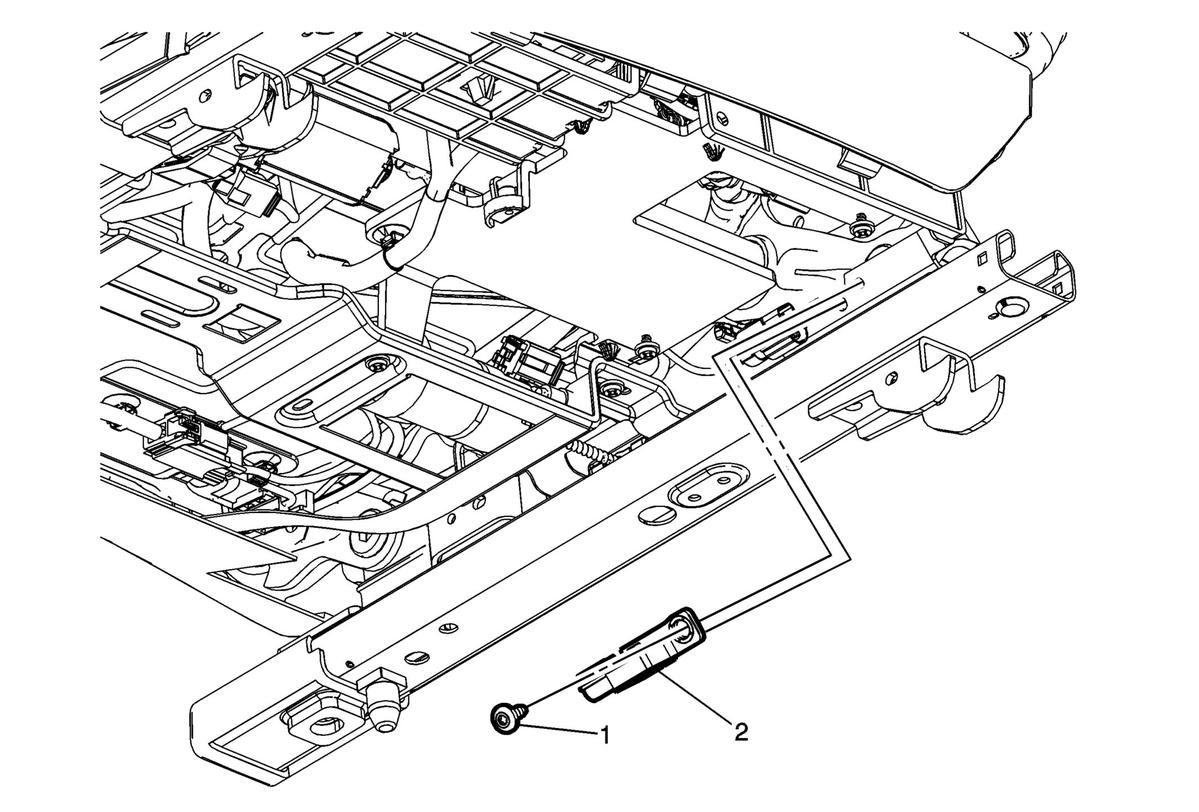

GM2837168

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the driver or passenger seat. Refer to Front Seat Removal and Installation .

1

Front Seat Horizontal Adjuster Position Sensor Fastener

CAUTION:

Refer to Fastener Caution .

2

Front Seat Horizontal Adjuster Position Sensor

Procedure

Disconnect the electric connector.
Disengage the locking feature by pulling down on the locking tab.
