Installation Procedure

Install the wheel speed sensor to the suspension knuckle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

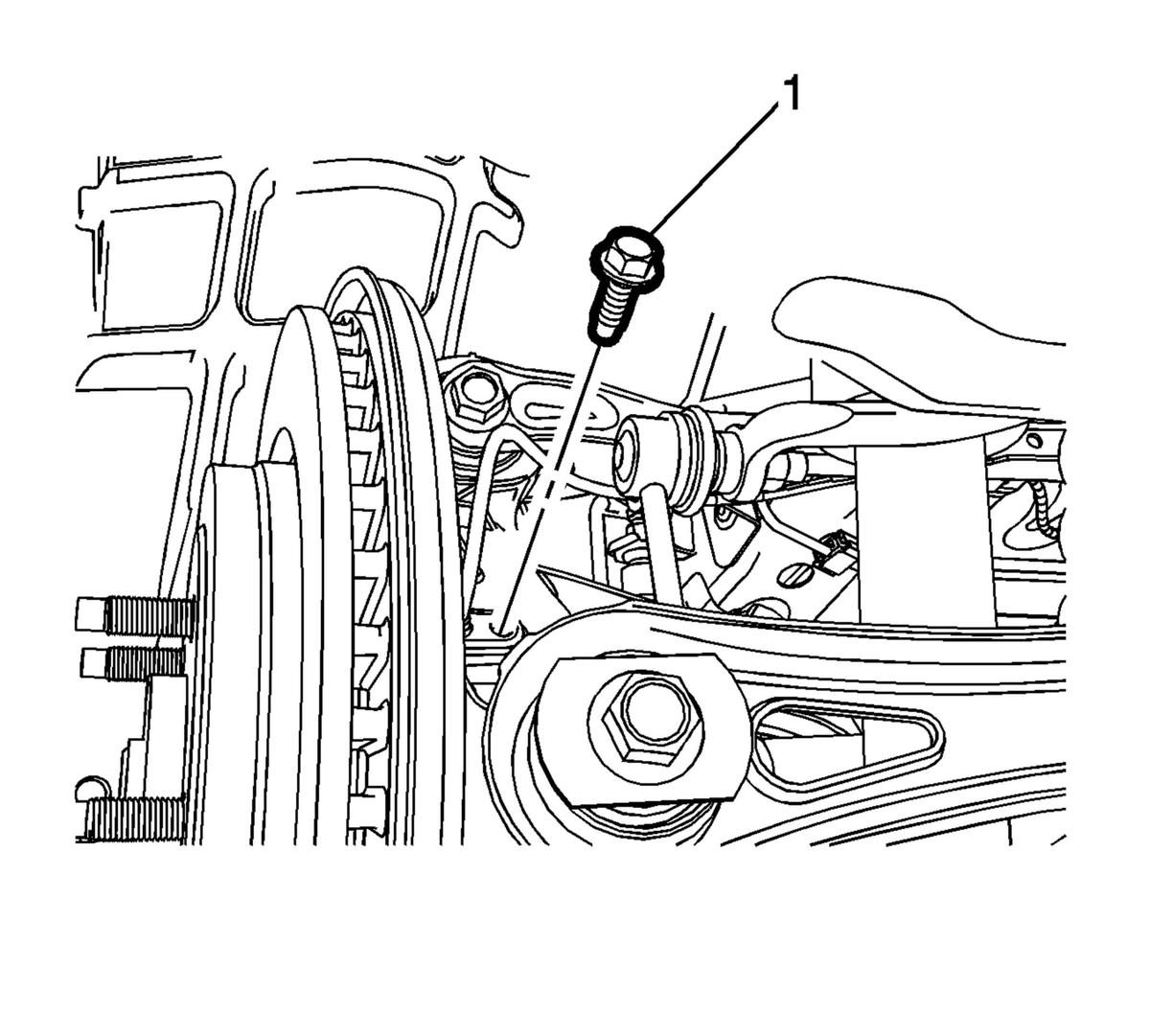

Install the wheel speed sensor bolt (1) and tighten to 10 N.m (89 lb in).
Courtesy of GENERAL MOTORS COMPANY

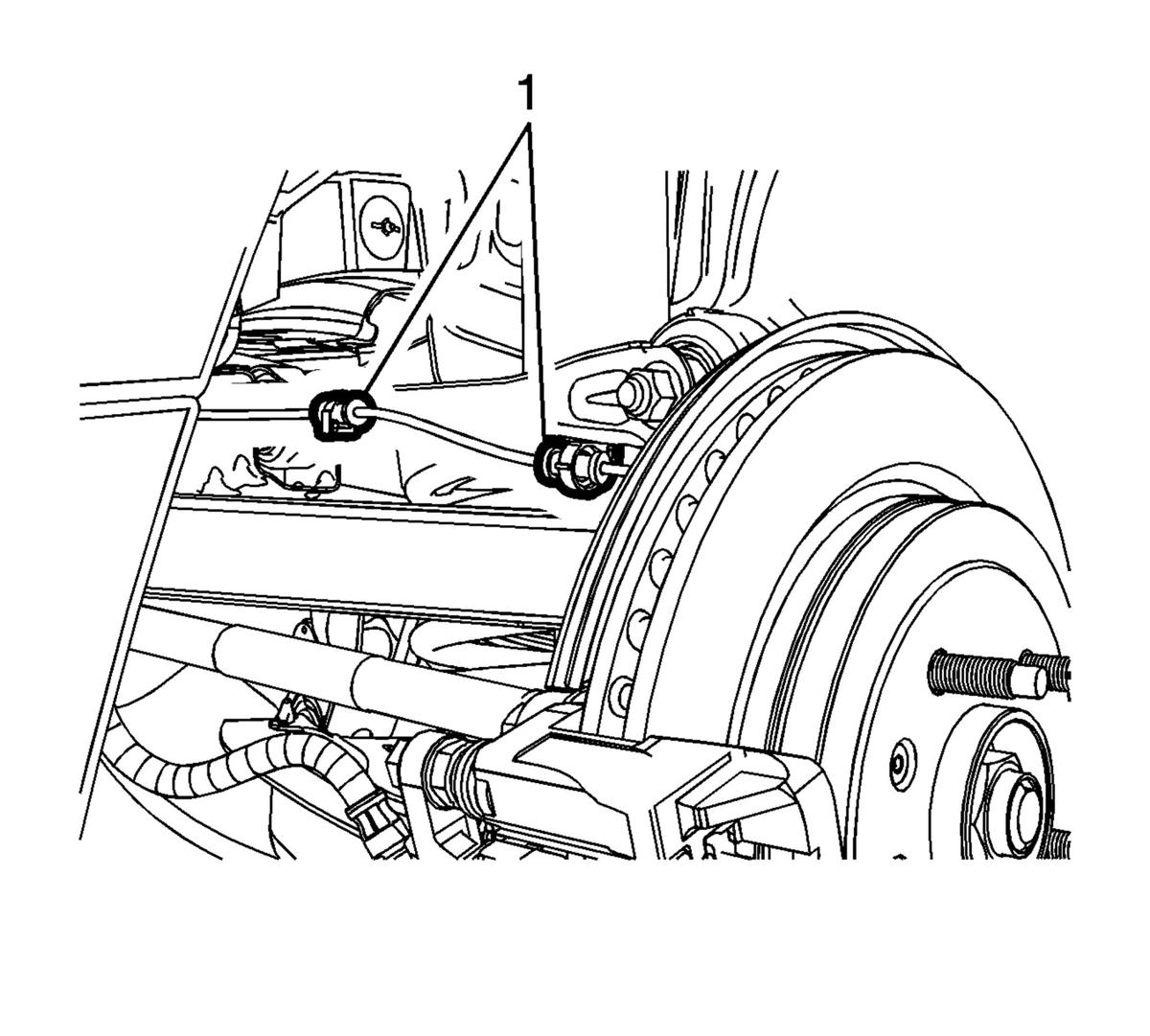

Install the wheel speed sensor harness clips (1) to the upper suspension arm.
Courtesy of GENERAL MOTORS COMPANY

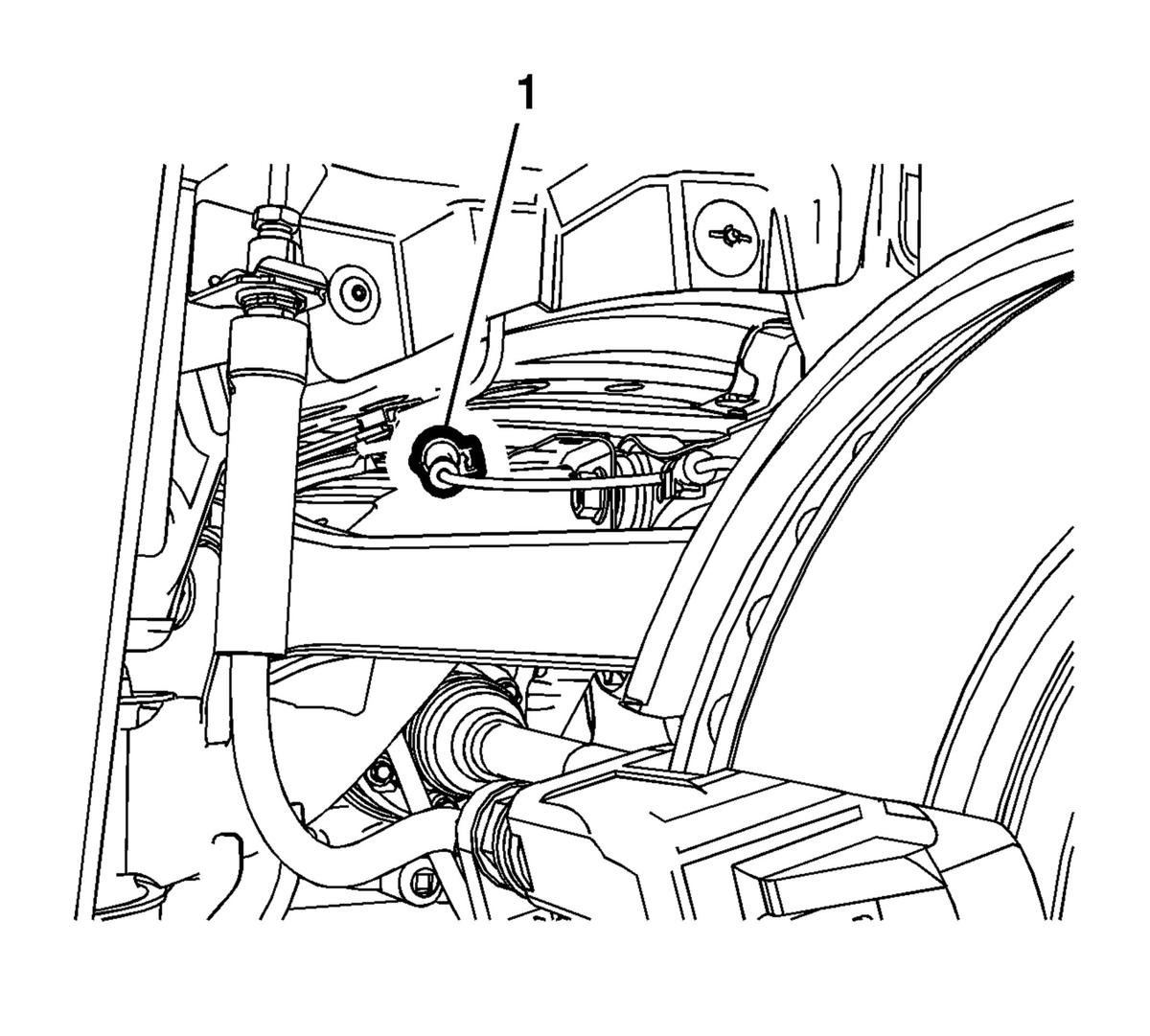

Install the wheel speed sensor harness clip (1) to the vehicle frame.
Courtesy of GENERAL MOTORS COMPANY

Connect the wheel speed sensor electrical connector.

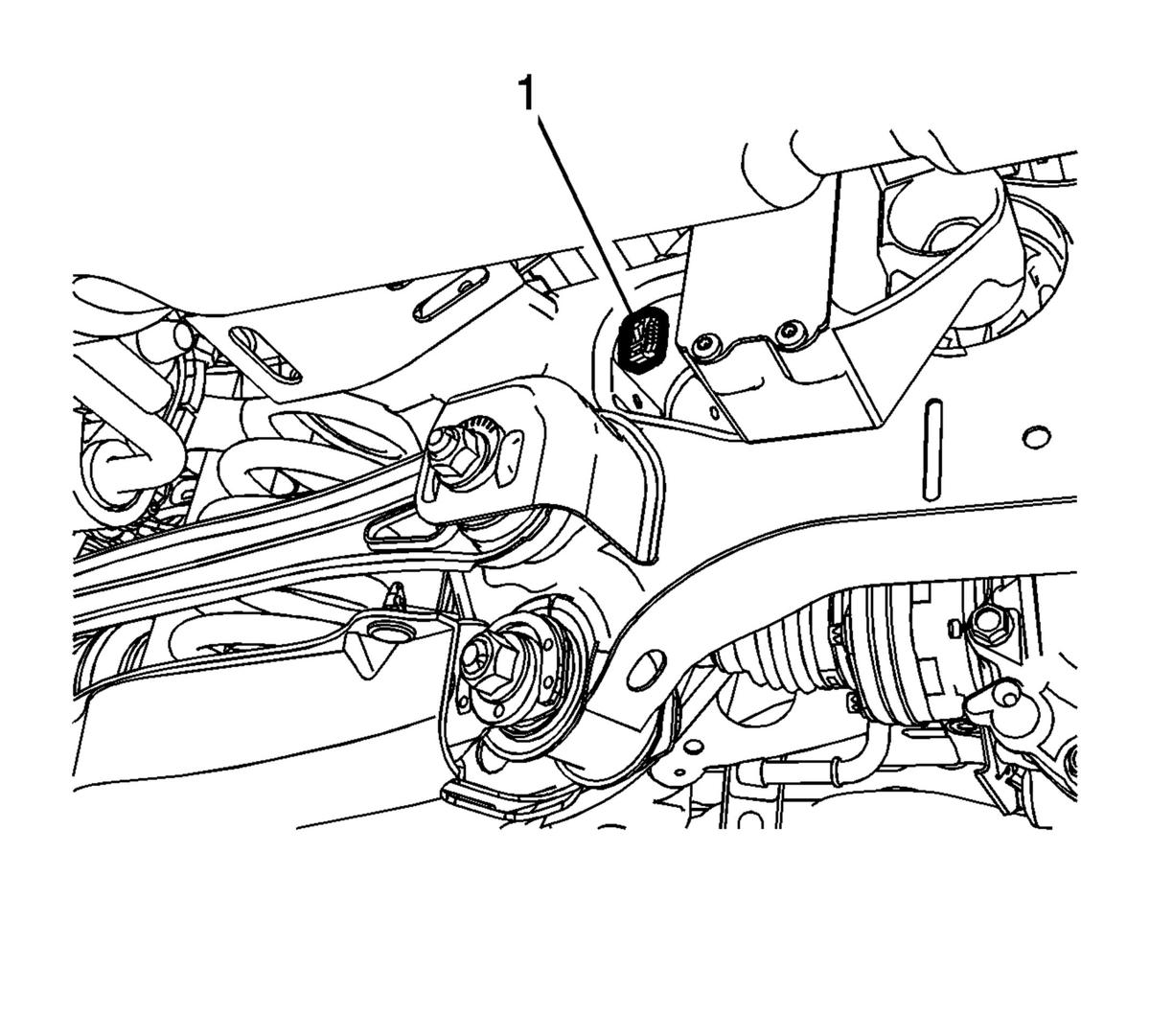

Install the connector clip (1) to the vehicle frame.
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series) , or Tire and Wheel Removal and Installation (V-Series) .
Perform the Diagnostic System Check - Vehicle .
