Steering Column Upper Trim Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

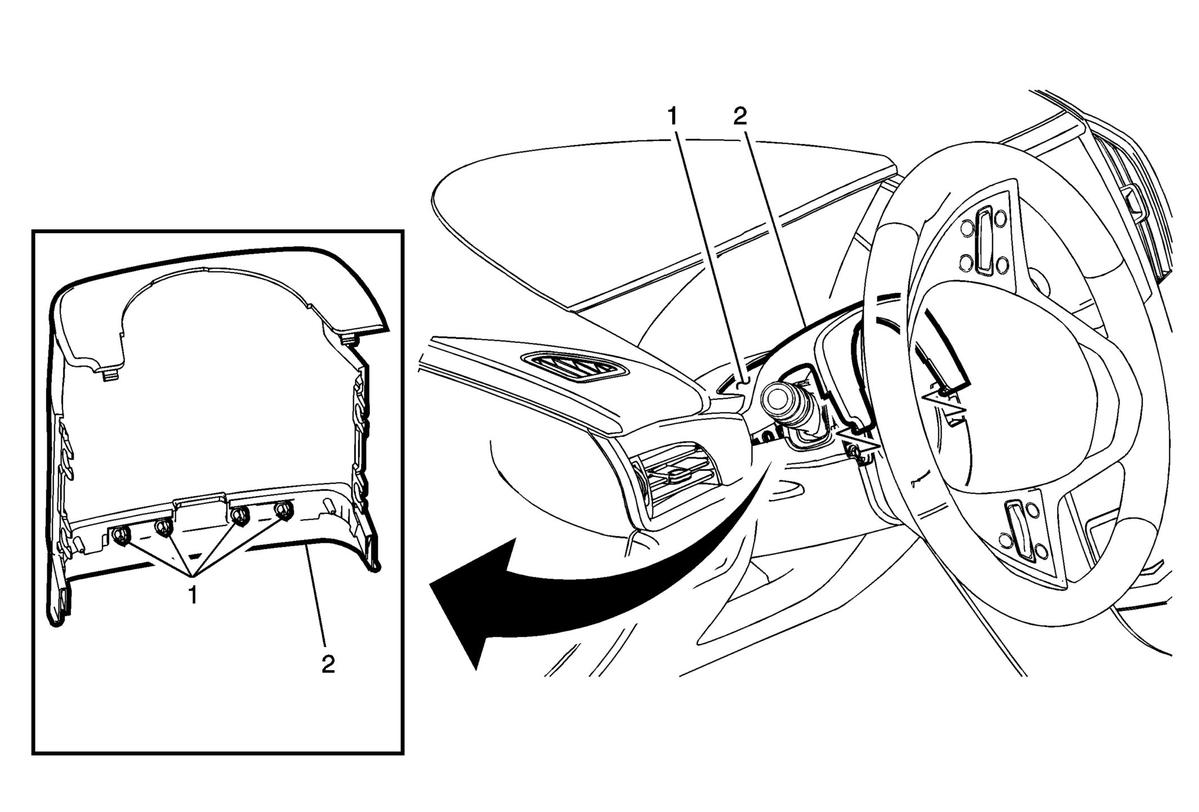

Callout	Component Name
1	Steering Column Housing Cover
2	Steering Column Upper Trim Cover Procedures Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover. Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.

Callout

Component Name

Steering Column Housing Cover

Steering Column Upper Trim Cover

Procedures

Use a flat bladed plastic trim tool in order to release the tabs securing the upper trim cover to the lower trim cover.
Reposition the upper trim cover to access and release the tabs on the bottom side of the steering column housing cover.
