Steering Wheel Shroud Replacement

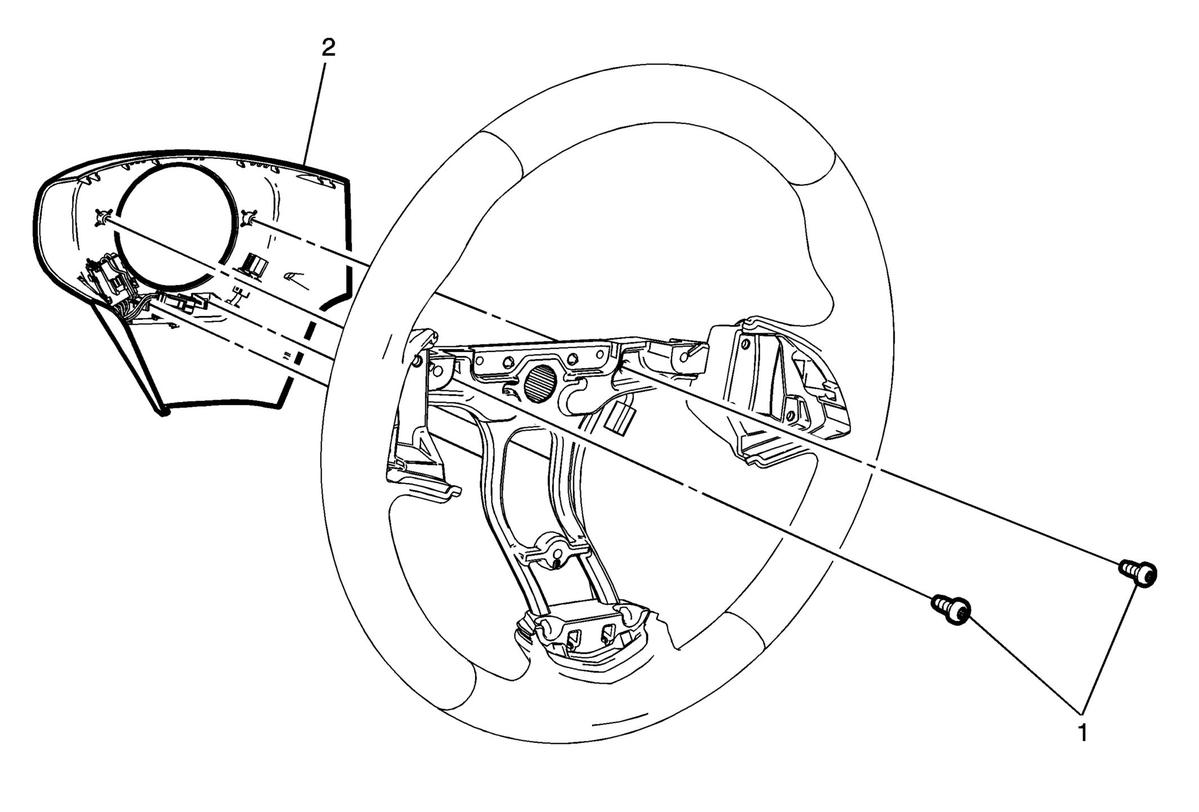

GM2911962Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Replacement
  2. Steering Wheel Horn Contact Replacement
  3. Automatic Transmission Manual Shift Auxiliary Position Switch Replacement [2x]
1 Steering Wheel Shroud Bolt [2x]
CAUTION:

Refer to Fastener Caution .
2 Steering Wheel Shroud

Procedure

  1. Disconnect the electrical connectors.
  2. Use extra care when removing the steering wheel back cover, push the edges of the back cover downward.
  3. Transfer components as necessary.
