Steering Wheel Spoke Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement

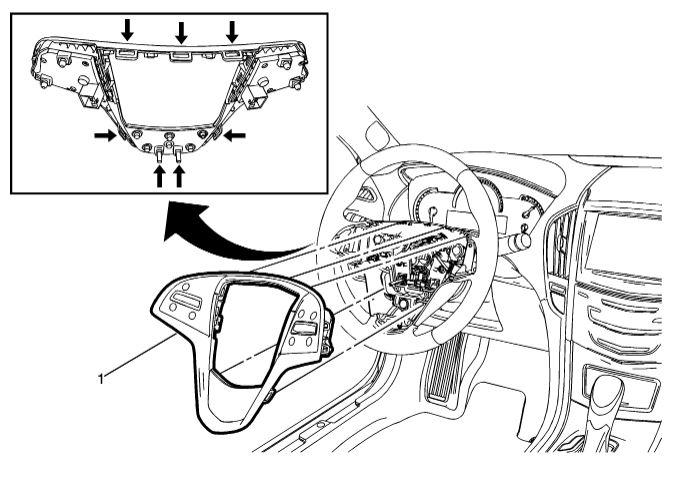

1	Steering Wheel Spoke Cover Procedure Release the retaining tabs and remove the steering wheel spoke cover from the steering wheel. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Steering Wheel Spoke Cover

Procedure

Release the retaining tabs and remove the steering wheel spoke cover from the steering wheel.
Disconnect the electrical connectors.
Transfer components as necessary.
