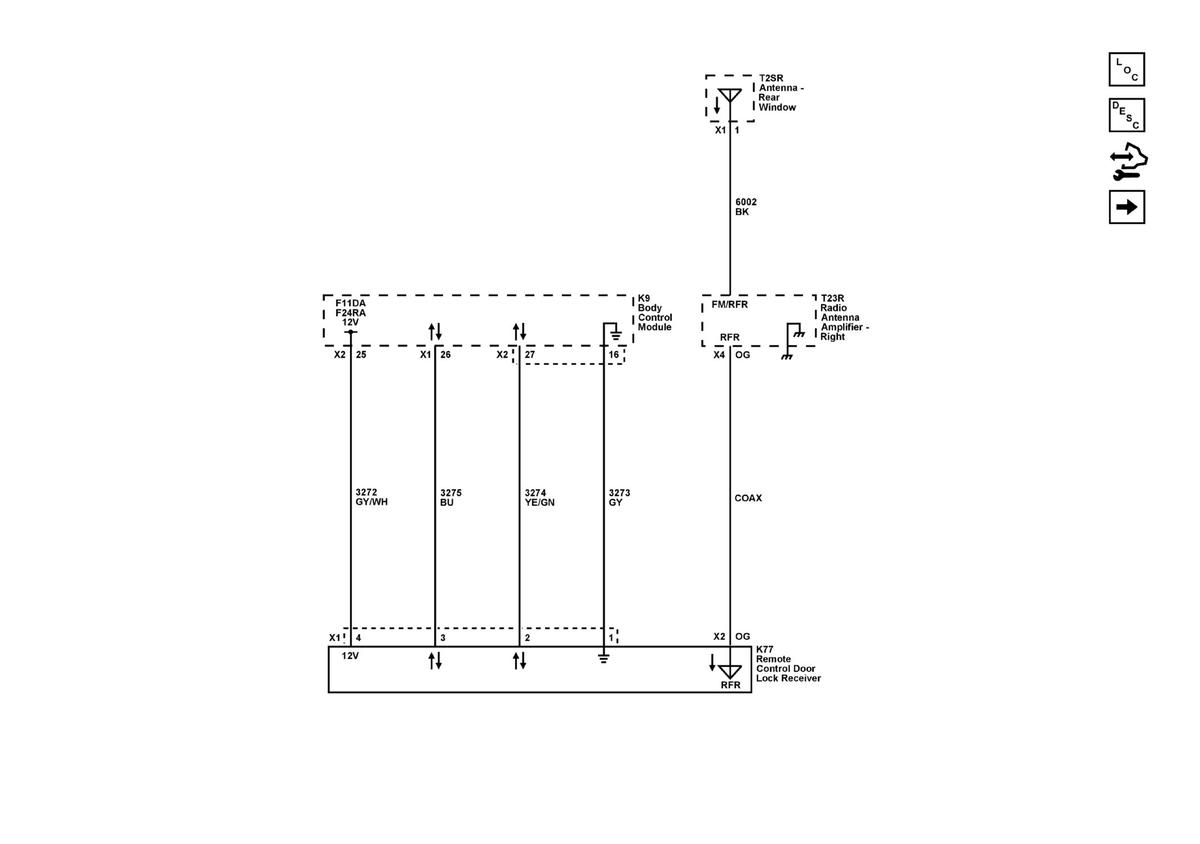

Home › Cadillac › 2019 › ATS Base, RWD › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function Wiring Schematics › Keyless Entry - Active
