Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

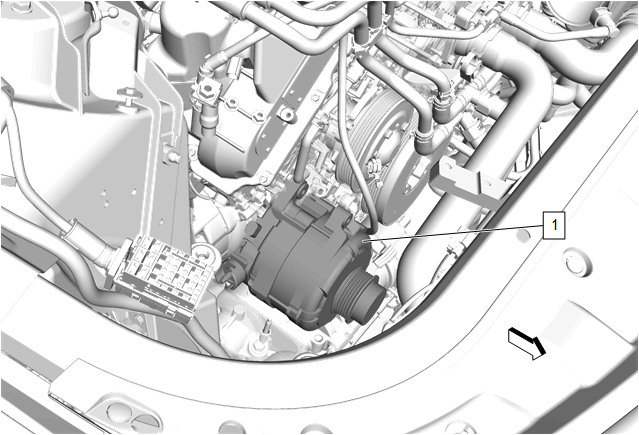

Generator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

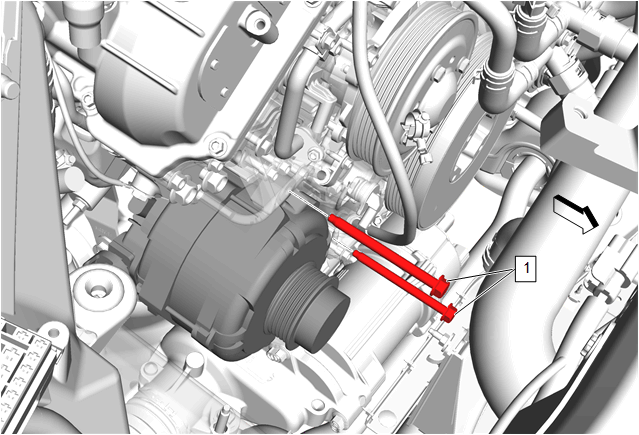

Generator Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

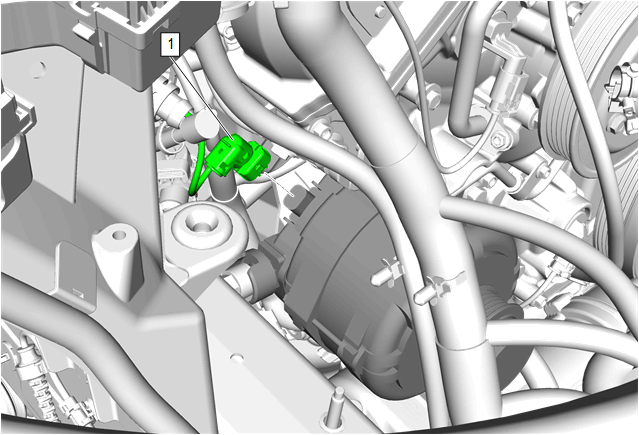

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

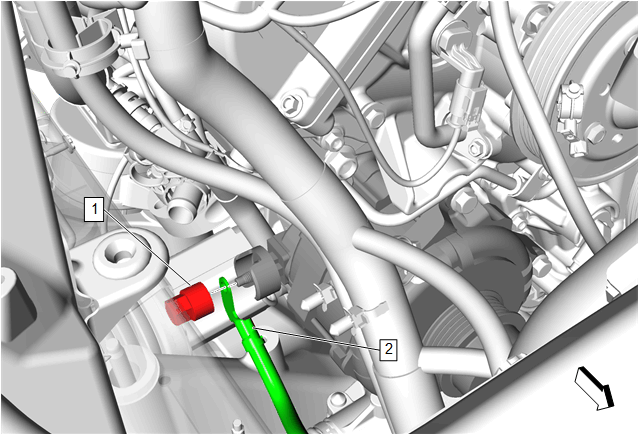

Generator Cable (2) - Install
Battery Positive Cable Nut (1) - Install and tighten 15 N.m (11 lb ft)
Install the accessory drive primary belt to the generator pulley. Accessory Drive Primary Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

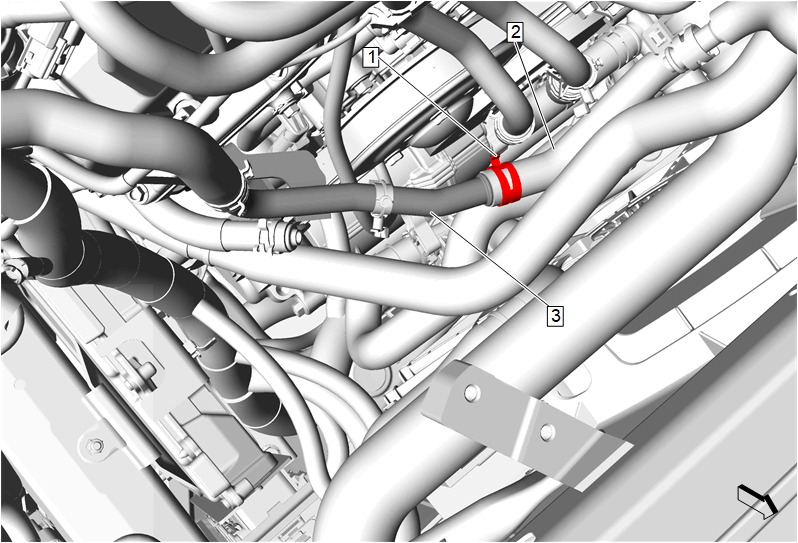

Radiator Inlet Pipe (3) - Install - Radiator Inlet Pipe Replacement (LTA)
Courtesy of GENERAL MOTORS COMPANY

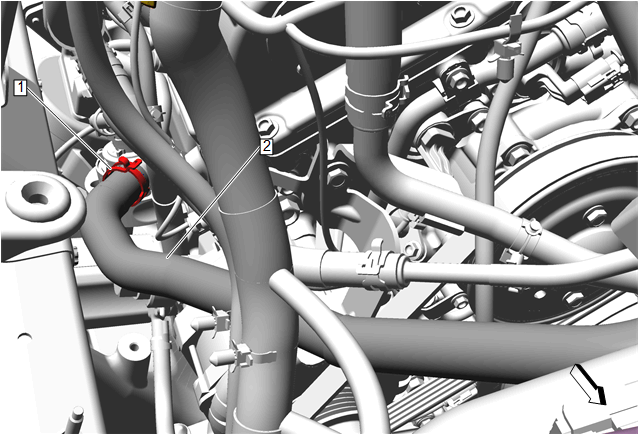

Heater Water Auxiliary Pump Inlet Hose (2) - Install - Heater Water Auxiliary Pump Inlet Hose Replacement (LTA Heater Inlet and Outlet Pipe to Auxiliary Heater Inlet Hose Tee)Heater Water Auxiliary Pump Inlet Hose Replacement (LTA Auxiliary Water Pump Tee to Turbo Charger Coolant Feed Return Pipe)Heater Water Auxiliary Pump Inlet Hose Replacement (LTA Auxiliary Heater Inlet Hose Tee to Heater Coolant Pump)
Courtesy of GENERAL MOTORS COMPANY

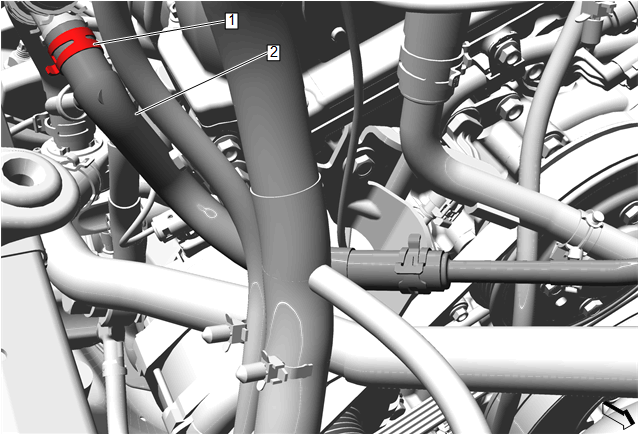

Heater Outlet Hose (2) - Install - Heater Outlet Hose Replacement (LTA Auxiliary Water Pump to Engine Front Cover Water Outlet)Heater Outlet Hose Replacement (Heater Core Outlet Tube to Heater Inlet and Outlet Pipe and Radiator Surge Tank LTA)
Courtesy of GENERAL MOTORS COMPANY

Engine Control Module Bracket (2) - Install - Engine Control Module Bracket Replacement
Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Assembly (2) - Install - Air Cleaner Assembly Replacement
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
