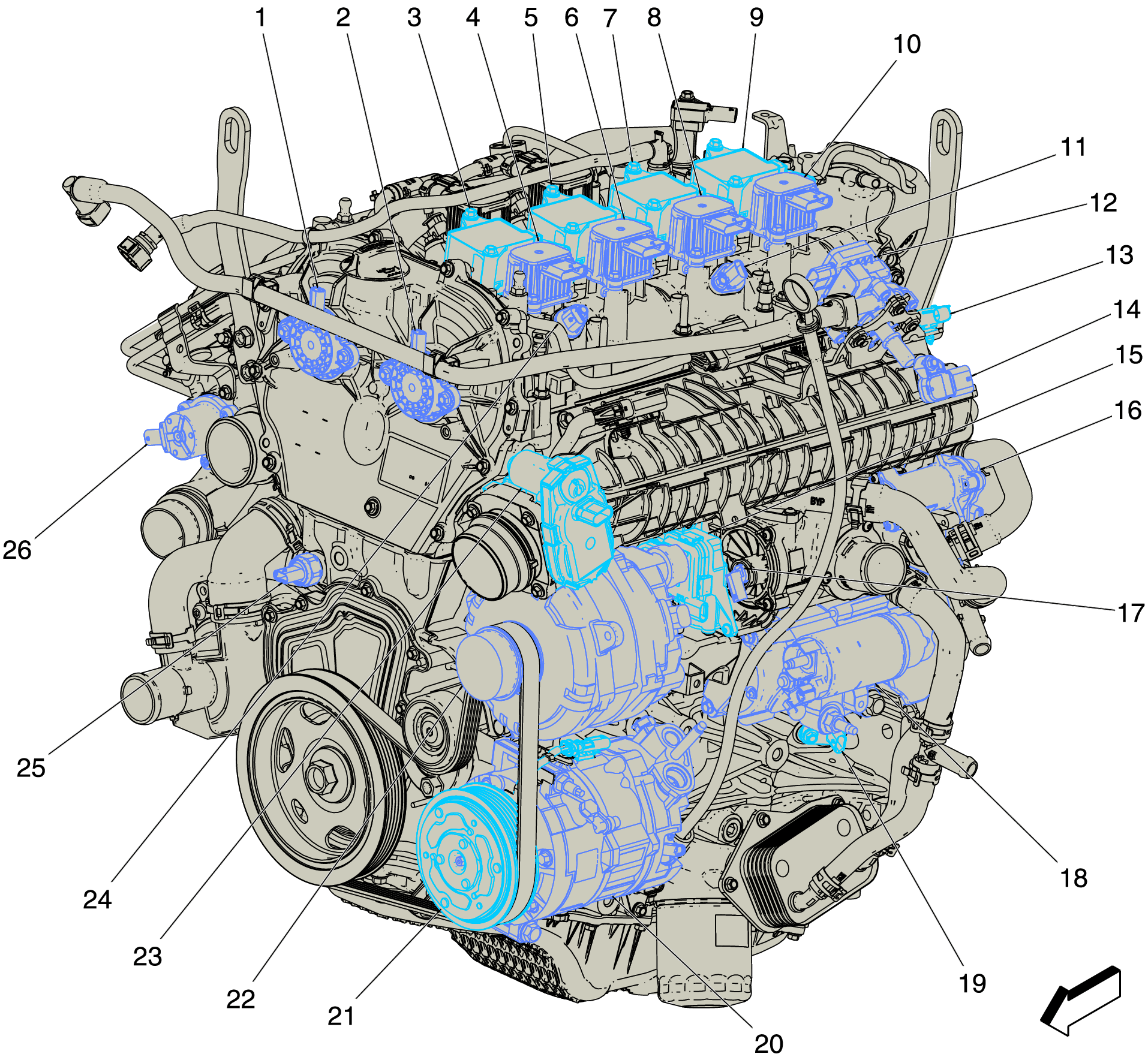

Engine Components - Left Side 1 of 2 (LSY)
Engine Components - Left Side 1 of 2 (LSY)
| Items |
|---|
| 1. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) |
| 2. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) |
| 3. T8A Ignition Coil 1 (LGW/LGX/LTA) T8A Ignition Coil 1 (LGW/LGX/LTA)T8A Ignition Coil 1 (LSY) |
| 4. M129A Intake Camshaft Profile Actuator 1 (LSY) M129A Intake Camshaft Profile Actuator 1 |
| 5. T8B Ignition Coil 2 (LGW/LGX/LTA) T8B Ignition Coil 2 (LGW/LGX/LTA)T8B Ignition Coil 2 (LSY) |
| 6. M129B Intake Camshaft Profile Actuator 2 (LSY) M129B Intake Camshaft Profile Actuator 2 |
| 7. T8C Ignition Coil 3 (LGW/LGX/LTA) T8C Ignition Coil 3 (LGW/LGX/LTA)T8C Ignition Coil 3 (LSY) |
| 8. M129C Intake Camshaft Profile Actuator 3 (LSY) M129C Intake Camshaft Profile Actuator 3 |
| 9. T8D Ignition Coil 4 (LGW/LGX/LTA) T8D Ignition Coil 4 (LGW/LGX/LTA)T8D Ignition Coil 4 (LSY) |
| 10. M129D Intake Camshaft Profile Actuator 4 (LSY) M129D Intake Camshaft Profile Actuator 4 |
| 11. B338B Intake Camshaft Profile Actuator Position Sensor 2 B338B Intake Camshaft Profile Sleeve Position Sensor 2 |
| 12. G58 Evaporative Emission Purge Pump G58 Evaporative Emission Purge Pump |
| 13. B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake (LSY) |
| 14. B65 Intake Manifold Pressure and Air Temperature Sensor (LSY) |
| 15. Q97 Engine Coolant Flow Control Valve (LSY) |
| 16. Q74 Engine Coolant Bypass Valve (LSY) Q74 Engine Coolant Bypass Valve |
| 17. B34B Engine Coolant Temperature Sensor 2 (LSY) B34B Engine Coolant Temperature Sensor 2 |
| 18. M64 Starter Motor (LGW/LGX/LSY) M64 Starter Motor X1M64 Starter Motor X2 |
| 19. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LSY)B26 Crankshaft Position Sensor (LTA/LGX) |
| 20. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 21. Q2 A/C Compressor Clutch |
| 22. G13 Generator G13 Generator X1G13 Generator X2 (KL9) |
| 23. Q38 Throttle Body (LGW/LGX) Q38 Throttle Body |
| 24. B338A Intake Camshaft Profile Actuator Position Sensor 1 B338A Intake Camshaft Profile Sleeve Position Sensor 1 |
| 25. B37B Engine Oil Pressure Sensor (LGW/LGX) B37B Engine Oil Pressure Sensor (LGW/LGX/LSY) |
| 26. Q40 Turbocharger Bypass Solenoid Valve Q40 Turbocharger Bypass Solenoid Valve (LSY) |
