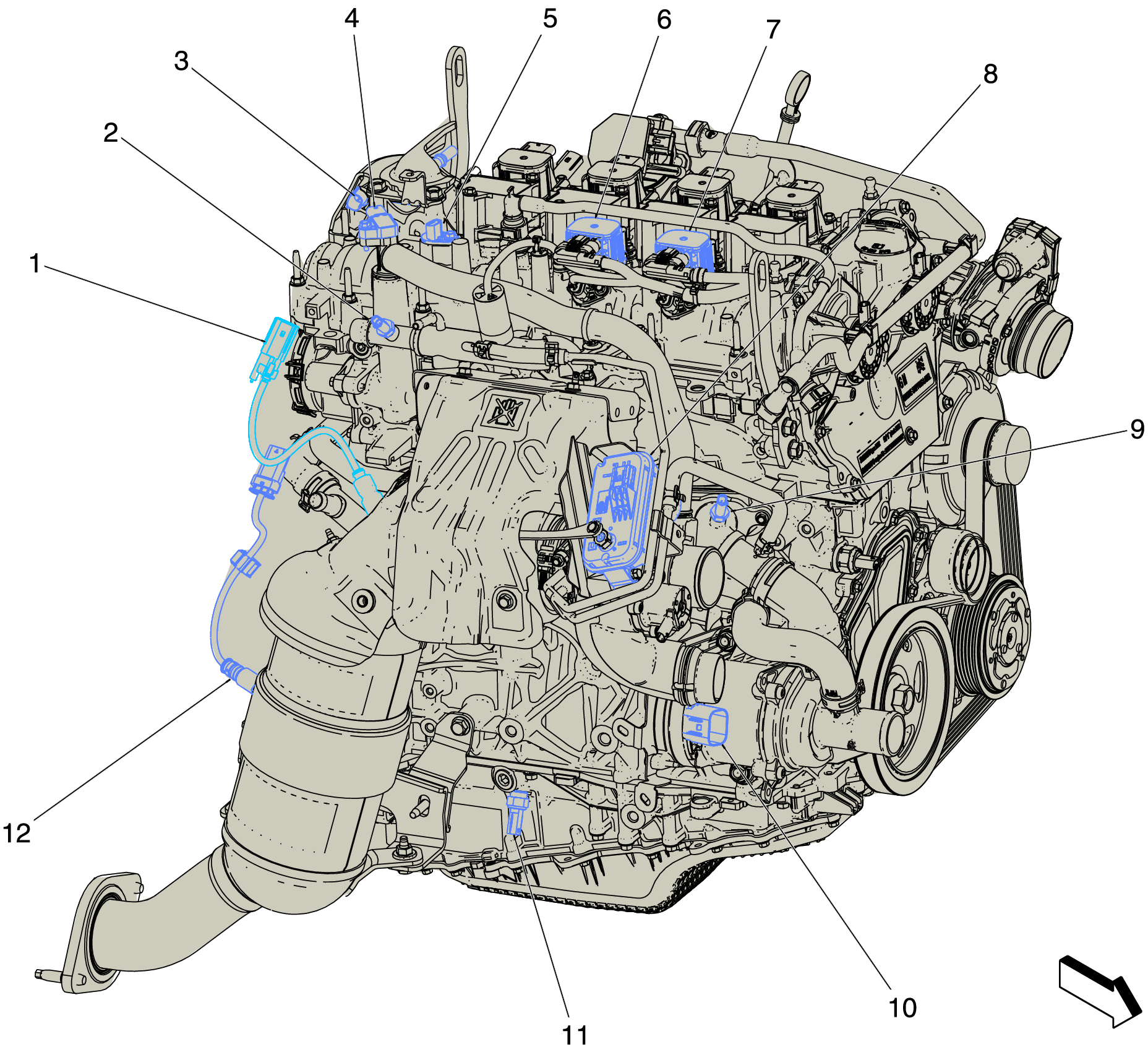

Engine Components - Right Side (LSY)
Engine Components - Right Side (LSY)
| Items |
|---|
| 1. B52A Heated Oxygen Sensor 1 (LSY) B52A Heated Oxygen Sensor 1 (LSY) |
| 2. B34G Engine Coolant Temperature Sensor - Heater Core Inlet |
| 3. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump |
| 4. B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust (LSY) |
| 5. M130C Exhaust Camshaft Profile Actuator 3 (LSY) M130C Exhaust Camshaft Profile Actuator 3 (LSY) |
| 6. M130B Exhaust Camshaft Profile Actuator 2 (LSY) M130B Exhaust Camshaft Profile Actuator 2 (LSY) |
| 7. M128 Turbocharger Wastegate Actuator (LSY) M128 Turbocharger Wastegate Actuator |
| 8. B34D Engine Coolant Temperature Sensor 4 (LSY) B34D Engine Coolant Temperature Sensor 4 |
| 9. G59 Engine Coolant Pump (LSY) G59 Engine Coolant Pump |
| 10. B36 Engine Oil Temperature Sensor (LSY) B36 Engine Oil Temperature Sensor |
| 11. B52B Heated Oxygen Sensor 2 (LSY) B52B Heated Oxygen Sensor 2 (LSY) |
