Air Cleaner Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

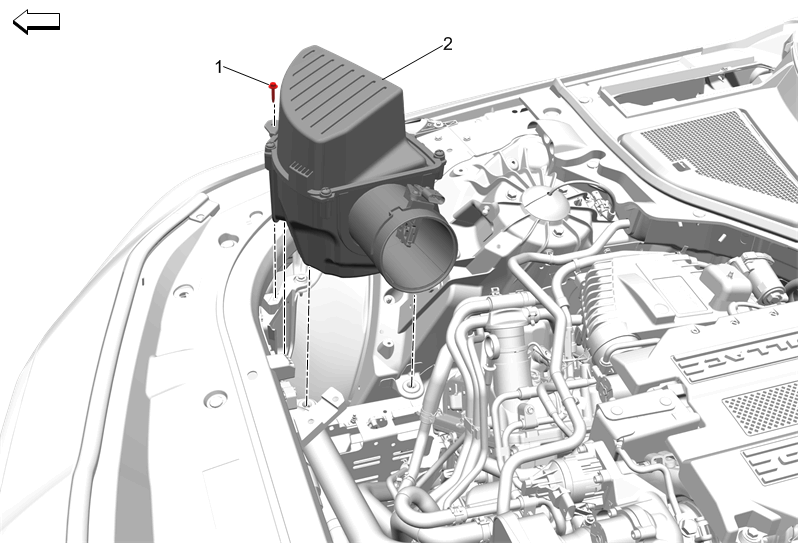

Callout	Component Name
Preliminary Procedures Front End Sheet Metal Diagonal Brace Replacement - Right Side (With LTA) Engine Wiring Harness Fuse Block Bracket-Passenger Side - Remove - Engine Wiring Harness Fuse Block Bracket Replacement (LTA-Passenger Side) Air Cleaner Outlet Duct Replacement Disconnect the electrical connector.
1	Air Cleaner Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Air Cleaner Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Air Cleaner Assembly

Procedure
