Crankshaft Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

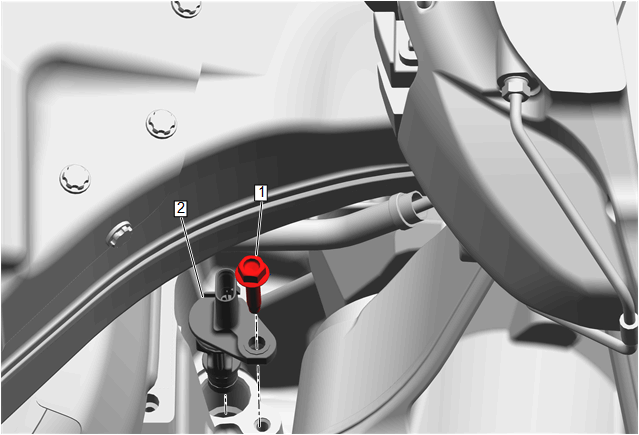

Callout	Component Name
Preliminary Procedure  Remove the right front wheelhouse liner. Front Wheelhouse Liner Replacement (CT6)Front Wheelhouse Liner Replacement (CT6-V)
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten  15 N.m (11 lb ft)
2	Crankshaft Position Sensor Procedure  Disconnect the crankshaft position sensor electrical wiring harness connector.
