Engine Coolant Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Partially drain the cooling system. Cooling System Draining and Filling (GE 47716)Cooling System Draining and Filling (LTA Static) Auxiliary Air Cleaner Outlet Duct Replacement

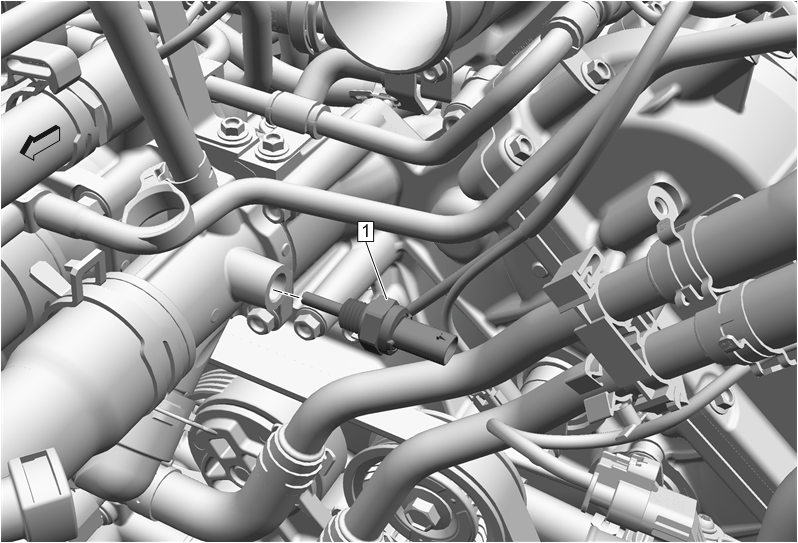

1	Engine Coolant Temperature Sensor CAUTION: Refer to Component Fastener Tightening Caution . Procedure Disconnect the engine coolant temperature sensor electrical wiring harness connector. Tighten 9 N.m (80 lb in)

Callout

Component Name

Preliminary Procedures

Engine Coolant Temperature Sensor

CAUTION:

Procedure
Disconnect the engine coolant temperature sensor electrical wiring harness connector.
Tighten
9 N.m (80 lb in)
