Fuel Feed Pipe Protector Replacement

Courtesy of GENERAL MOTORS COMPANY

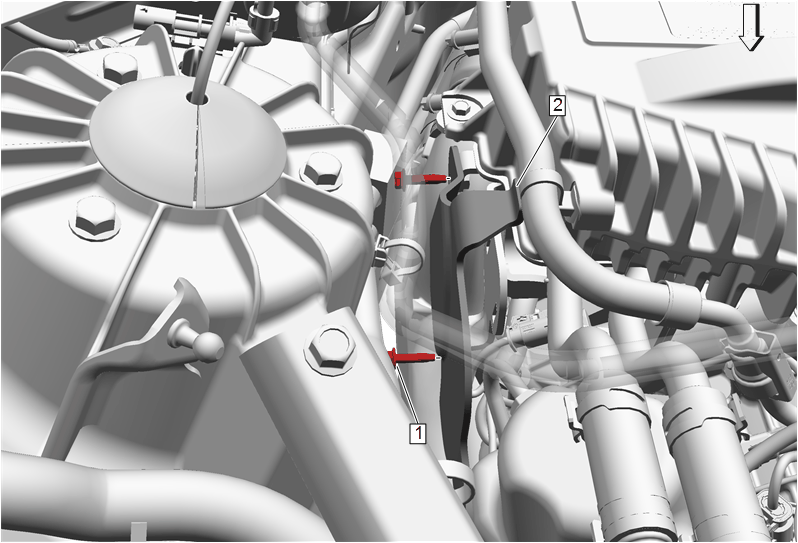

Callout	Component Name
1	Fuel Feed Pipe Protector Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  8.5 N.m (75 lb in)
2	Fuel Feed Pipe Protector
