Fuel Level Sensor Replacement (Fuel Sender Assembly)

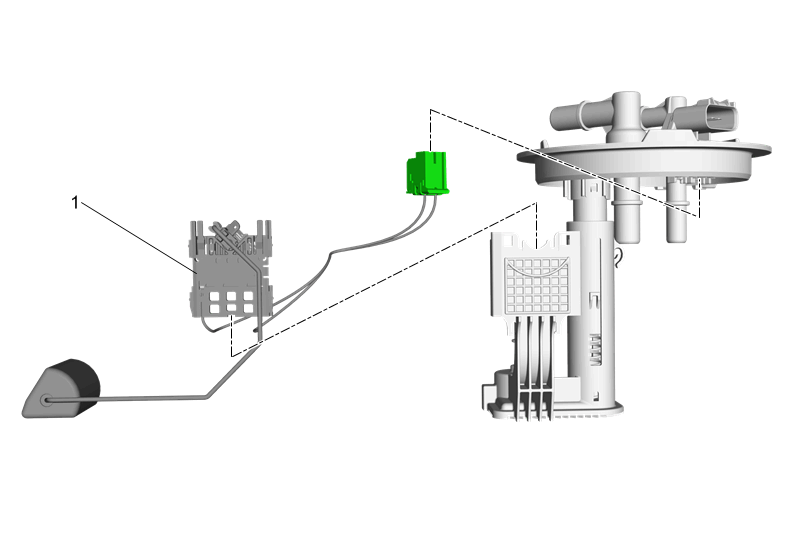

GM5080652Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Sender Assembly Replacement
1 Fuel Level Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
