Removal Procedure

  1. Rear Compartment Side Trim-Right Side - Remove - Rear Compartment Side Trim Replacement - Right Side
  2. {If equipped} Digital Map Module - Remove - Digital Map Module Replacement
  3. Disconnect the fuel pump power control module electrical connector.

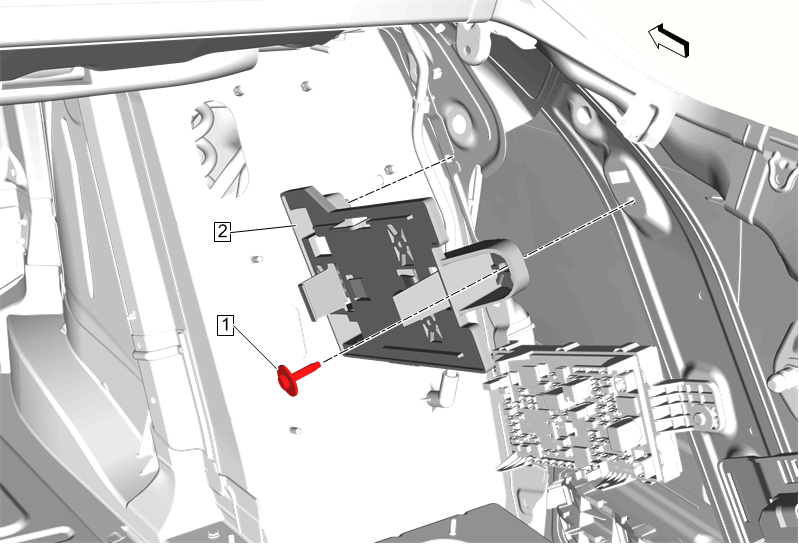

  4. GM5081041Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Bracket Bolt (1) - Remove

    5. NOTE:

    Remove the fuel pump power control module and bracket as an assembly.

  5. Fuel Pump Power Control Module Bracket (2) - Remove

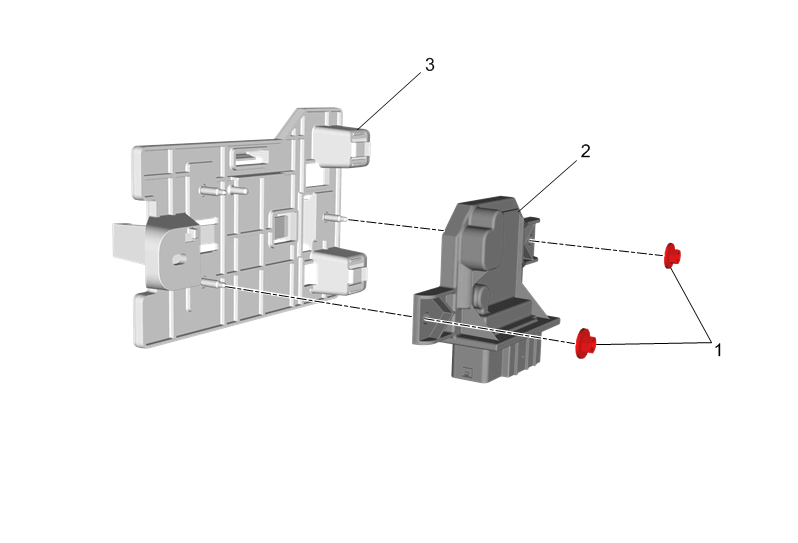

  6. GM5081042Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Nut (1) - Remove [2x]

  7. Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) - Remove
