Removal Procedure

    WARNING:

    Refer to Diesel/Gasoline Vapors Warning .

    WARNING:

    Refer to Safety Glasses Warning .

  1. Fuel Tank - Remove - Fuel Tank Replacement

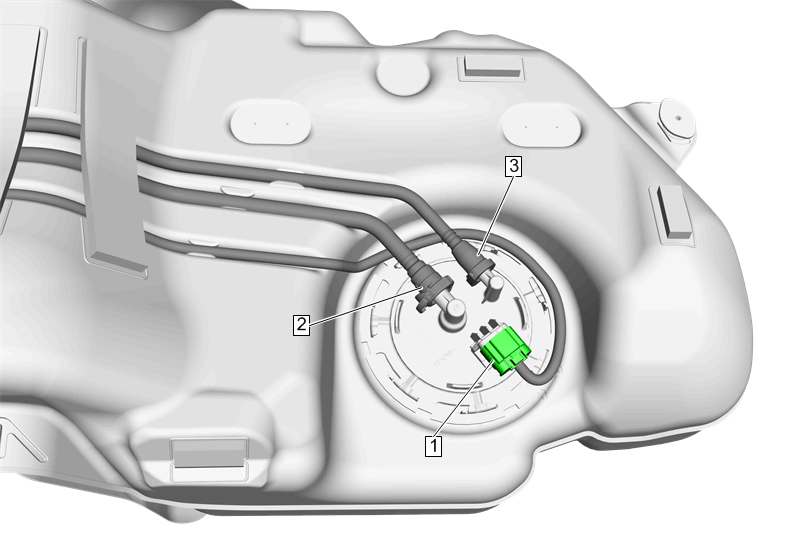

  2. GM5080843Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

  3. Evaporative Emission Canister Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
  4. Fuel Tank Vent Valve Hose (3) - Disconnect - Plastic Collar Quick Connect Fitting Service

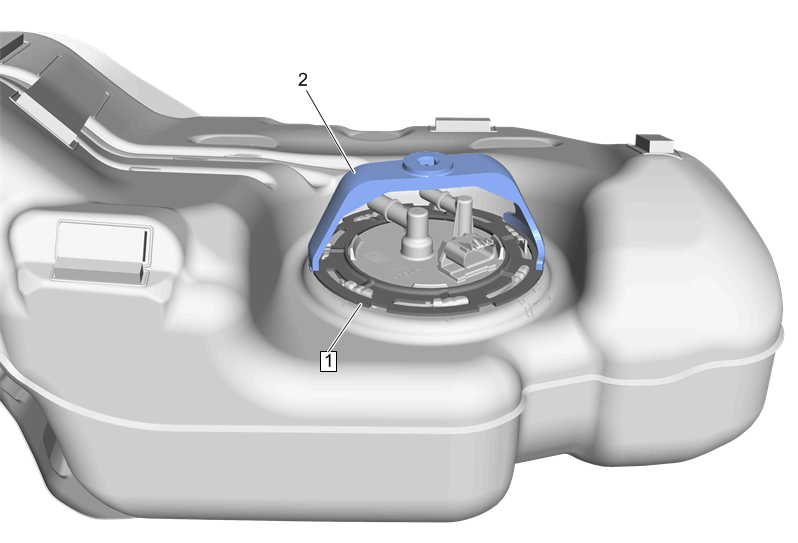

  5. GM5080844Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Remove - CH-45722  Fuel Sender Lock Ring Wrench (2)

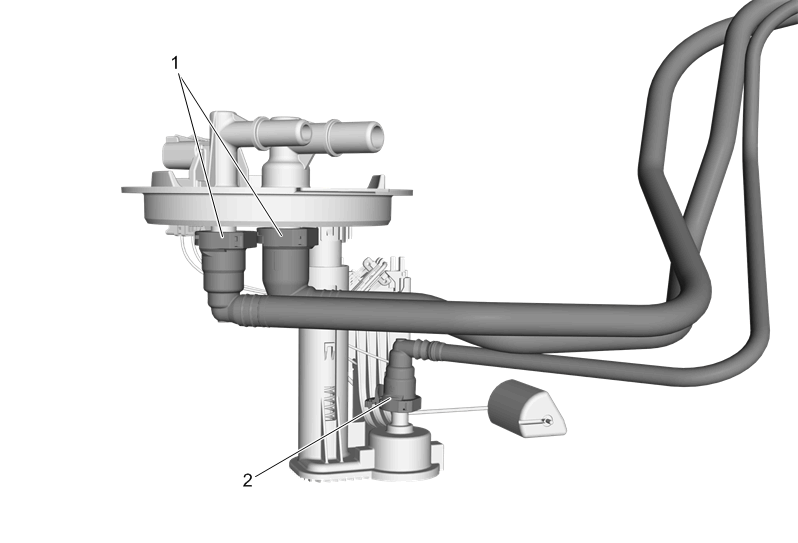

  6. GM5080846Courtesy of GENERAL MOTORS COMPANY

    Fuel Vent Pipe (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

  7. Transfer Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

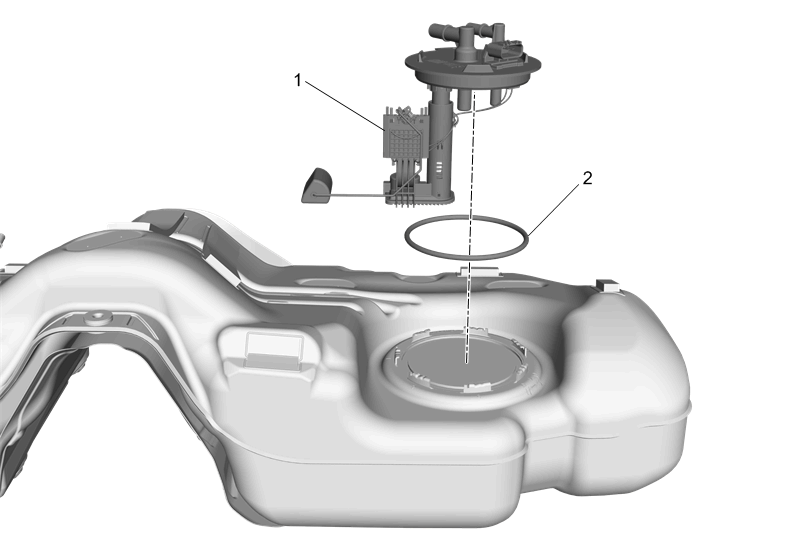

  8. GM5080845Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender (1) - Remove

  9. O-Ring (2) - Remove and DISCARD
