Installation Procedure

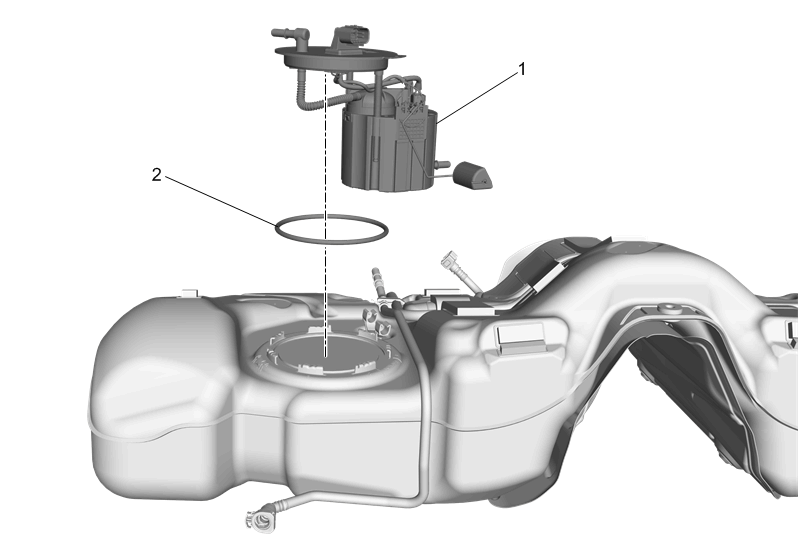

  1. GM5080663Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install

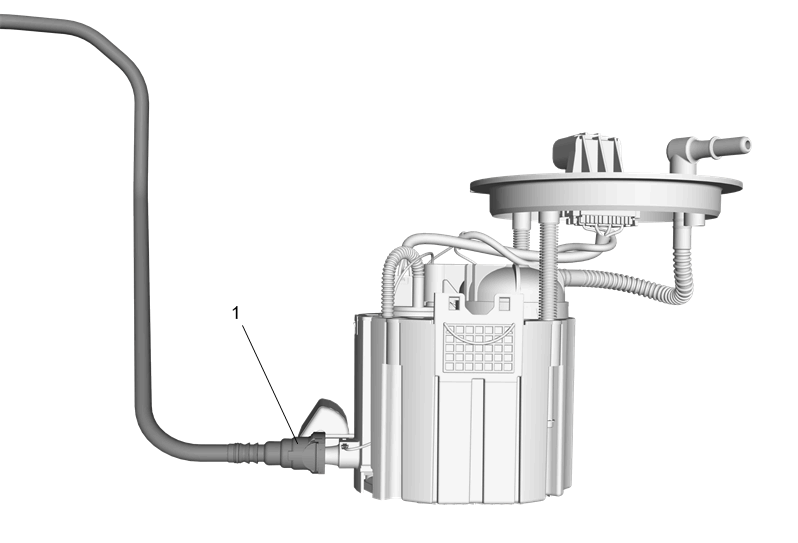

  3. GM5080669Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

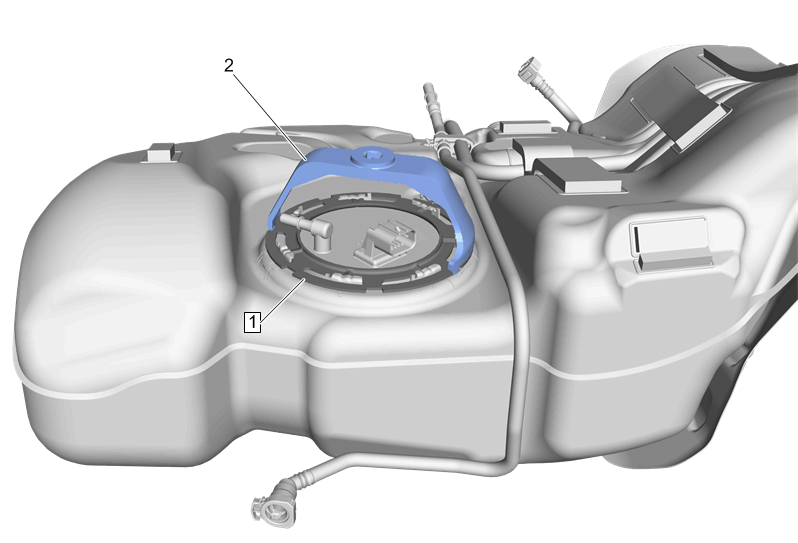

  4. GM5080659Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Install - CH-45722  Fuel Sender Lock Ring Wrench (2)

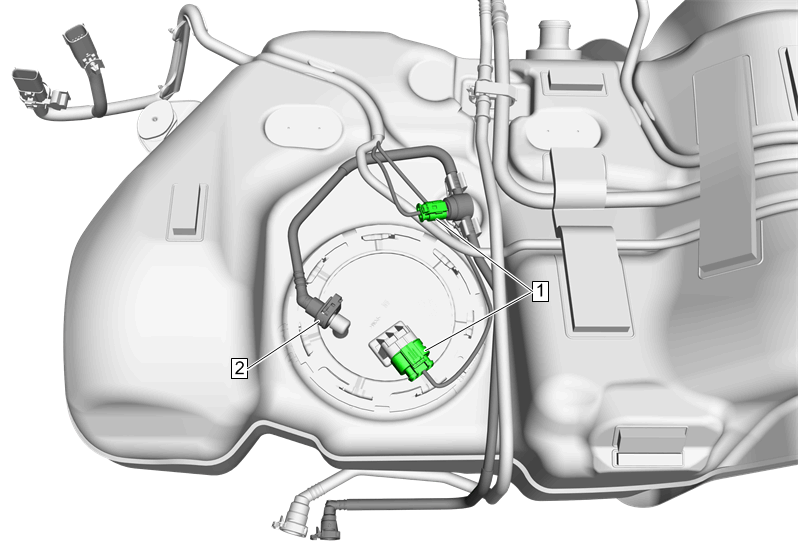

  5. GM5080656Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Electrical Connector (1) - Connect [2x]
  7. Fuel Tank - Install - Fuel Tank Replacement
