Transfer Case Control Module Replacement

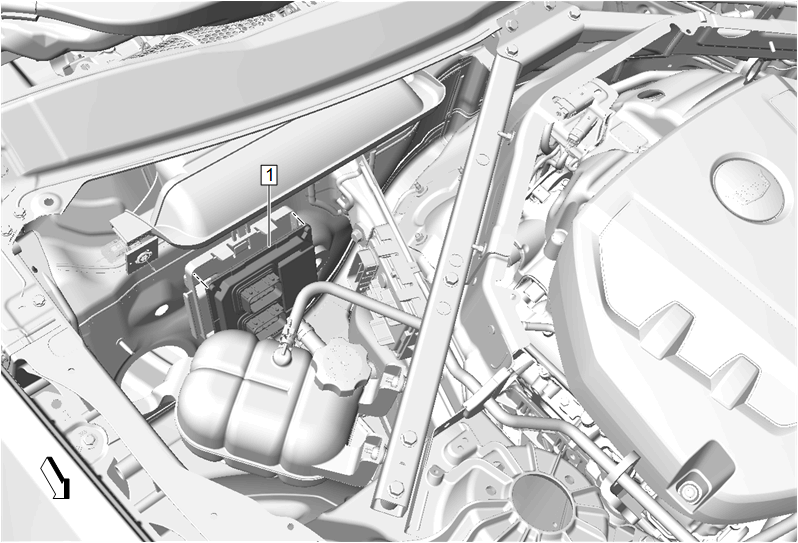

GM5083785

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel Access Hole Cover Replacement

1

Transfer Case Control Module

Procedure

Disconnect the electrical connectors.
Remove the module from the module bracket by releasing the retaining tabs.
After replacing the transfer case control module, record the clutch calibration identification number. Transfer Case Identification
Program K69 transmission control module. K69 Transfer Case Control Module: Programming and Setup
