Radio Control Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

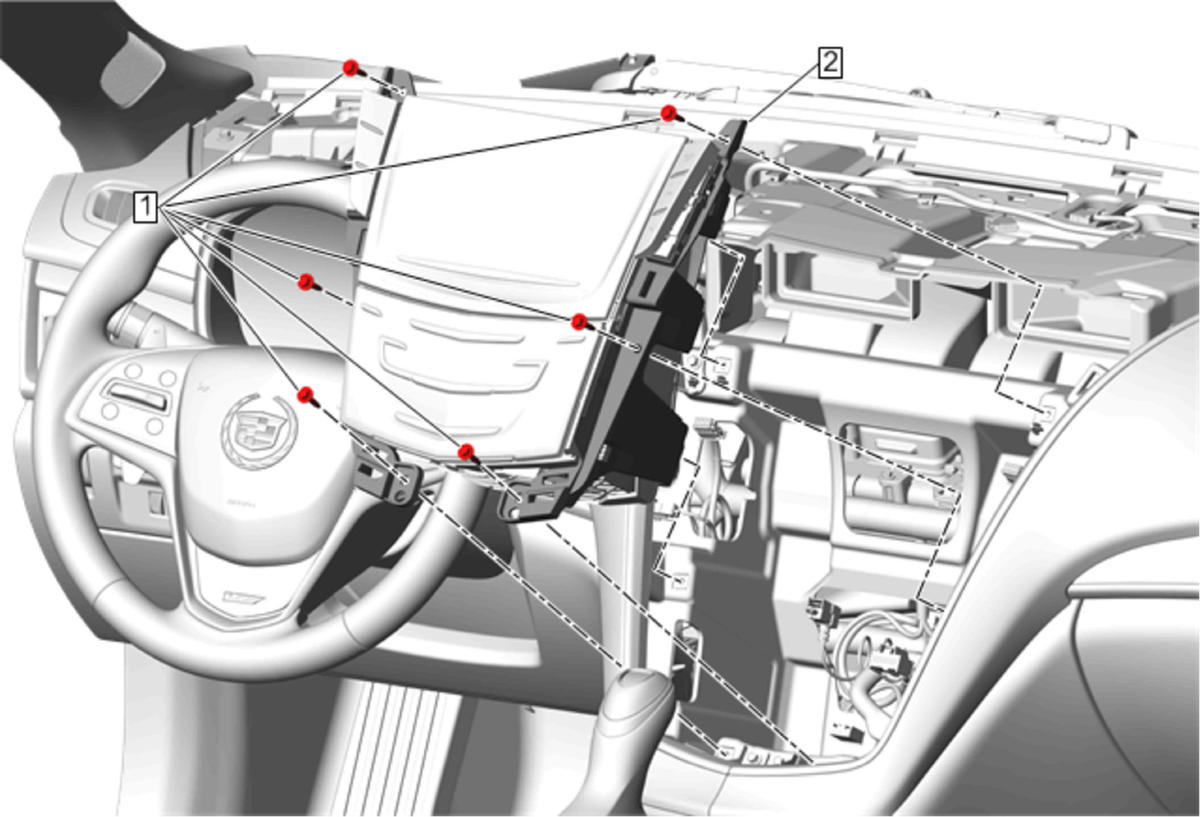

Callout	Component Name
Preliminary Procedures Instrument Panel Accessory Center Trim Plate Replacement Instrument Panel Trim Plate Replacement
1	Radio Control Fasteners [6x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Remove the radio control assembly from the instrument panel carrier. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Radio Control Fasteners [6x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure
