Front Side Door Lock Striker Replacement

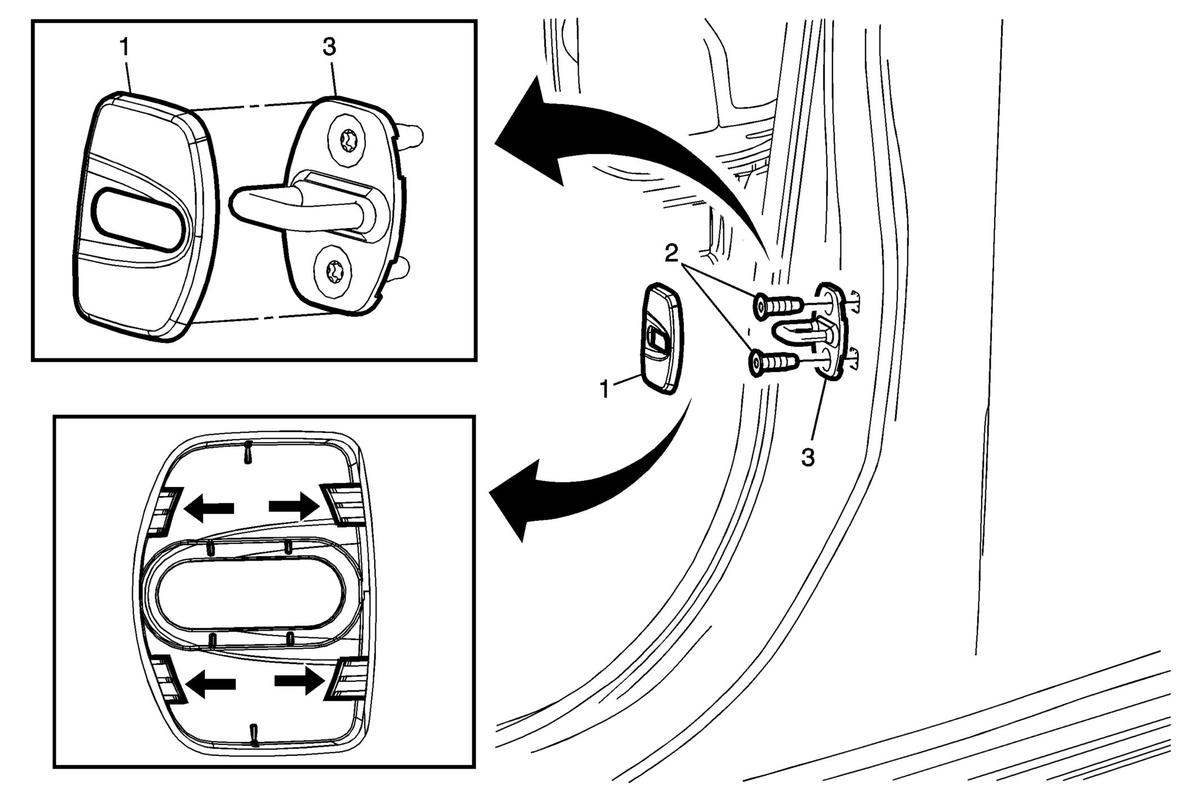

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Lock Striker Cover
WARNING:
In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.
NOTE:
Use a suitable tool, place the tool between the cover and the striker in a counter clockwise motion turn it releasing the cover from the striker. |
| 2 | Front Side Door Lock Striker Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 3 | Front Side Door Lock Striker Procedure
|
