Mobile Telephone Microphone Replacement

WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Mobile Telephone Microphone Grille Replacement It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof)
1	Mobile Telephone Microphone Procedure Disconnect the electrical connector. Release the retaining tabs.

Callout

Component Name

Preliminary Procedures

Mobile Telephone Microphone Grille Replacement
It is only necessary to lower the headlining. Only do those steps in the headlining procedure that will allow access to the component being removed. Headlining Trim Panel Replacement (Without Sunroof)Headlining Trim Panel Replacement (With Sunroof)

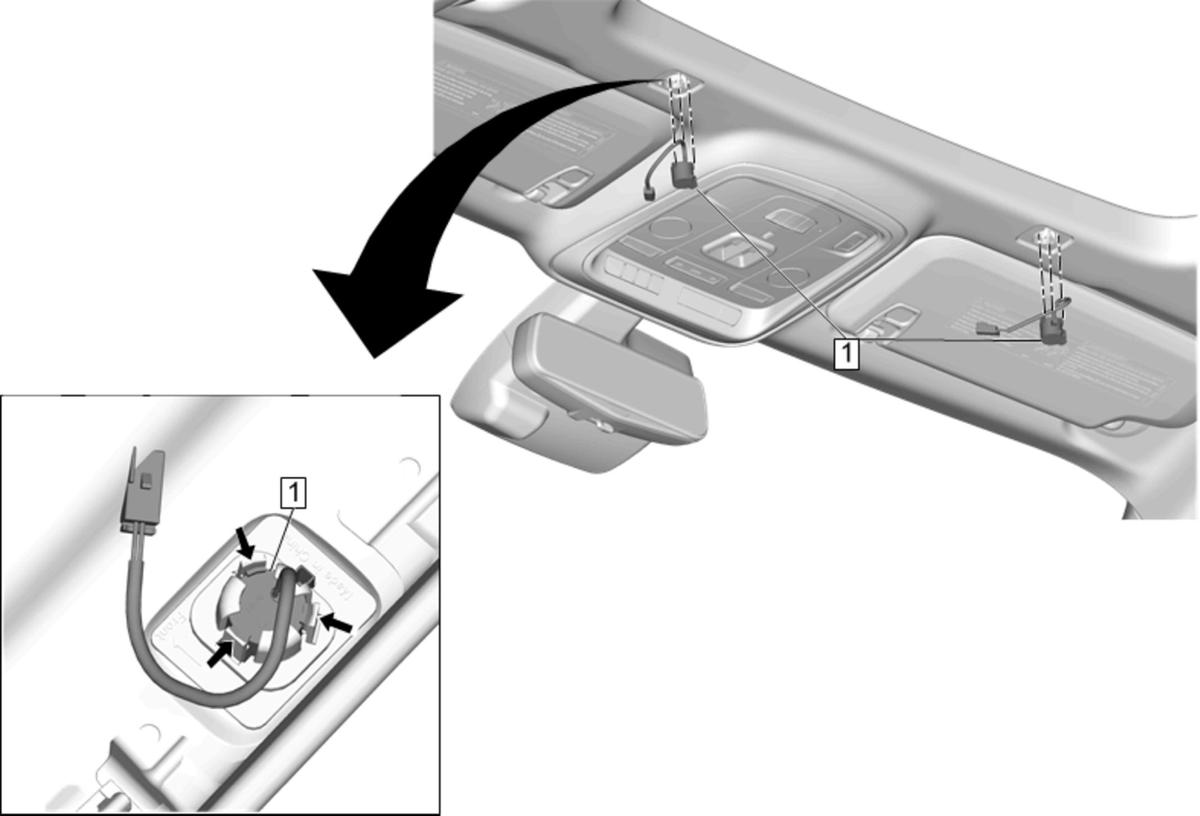

Mobile Telephone Microphone

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
