Outside Rearview Mirror Remote Control Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front side door armrest switch mount plate - drivers side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door)Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door) .

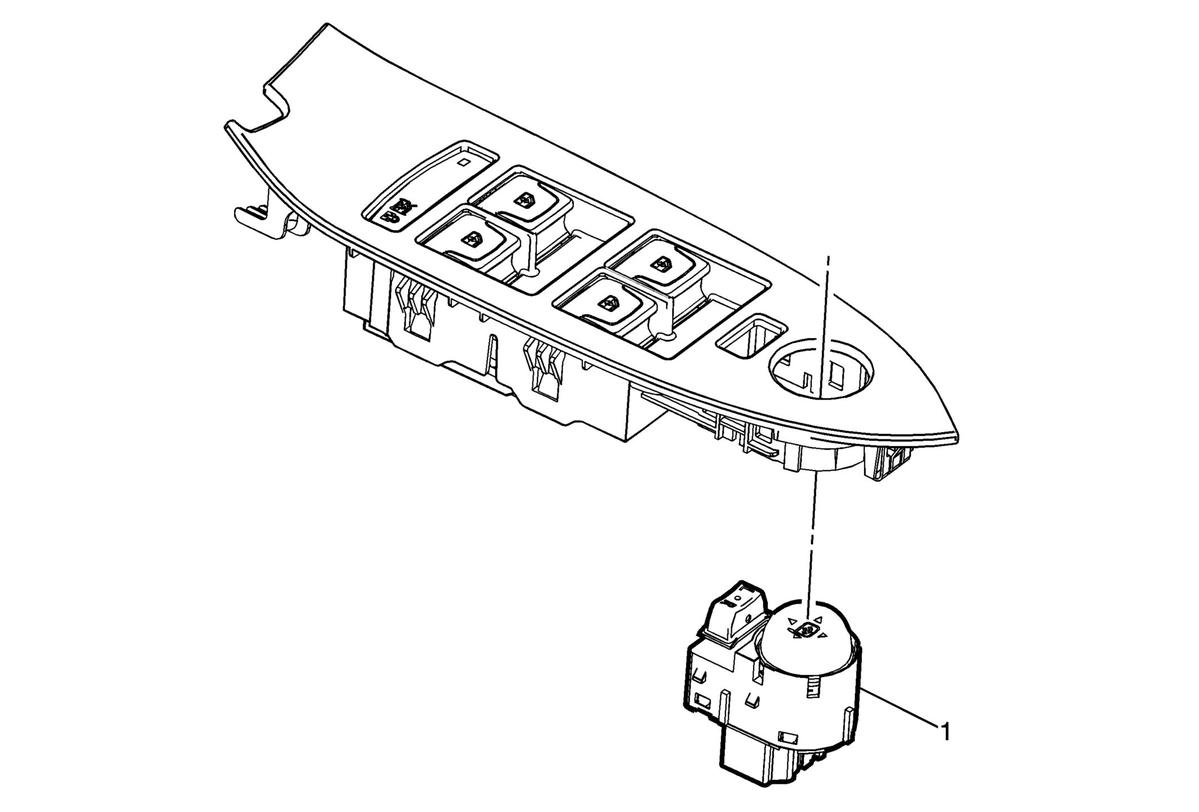

1	Outside Remote Control Rearview Mirror Switch Assembly Procedure  Release tabs on switch to remove from the front side door armrest switch mount plate.
