Communication Interface Module Bracket Replacement (UE1)
WARNING: This page is about a different car, the 2018 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

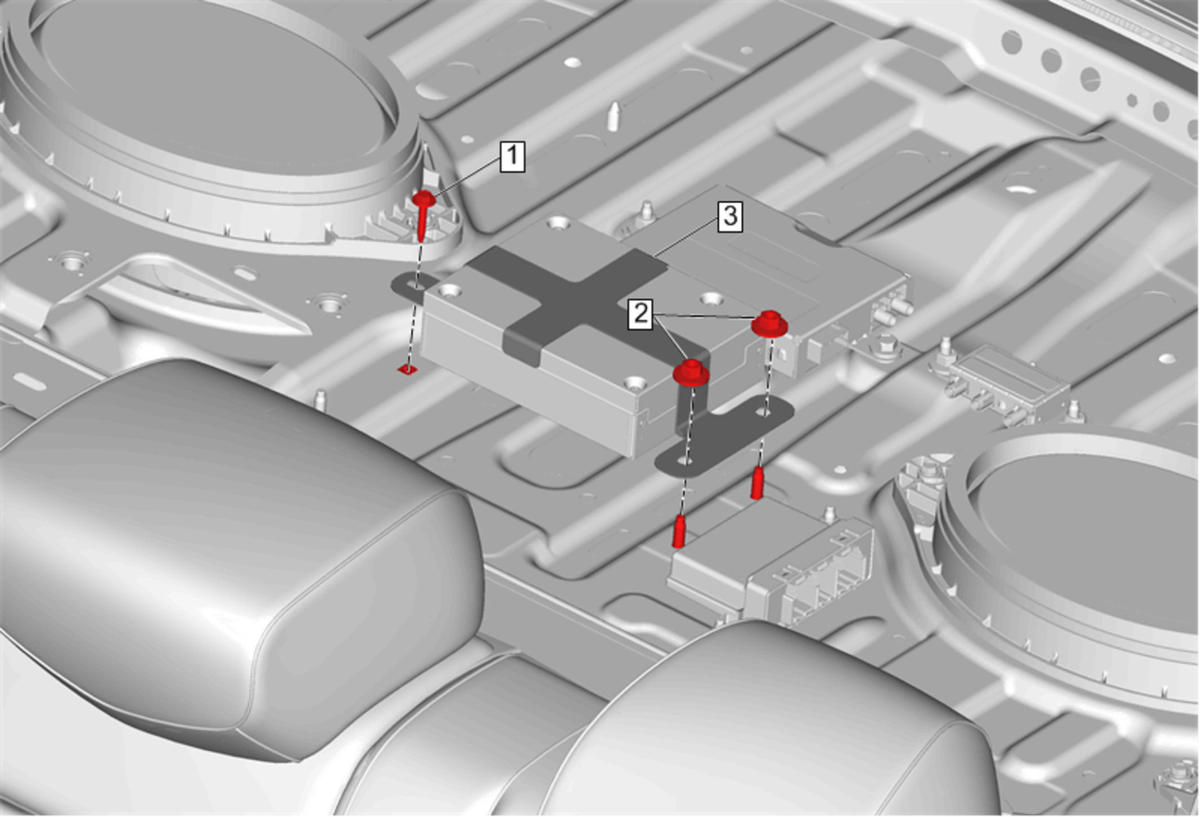

| Callout | Component Name |
|---|---|
| Preliminary Procedure Rear Window Panel Trim Replacement (With DB3)Rear Window Panel Trim Replacement (Without DB3) |
|
| 1 | Communication Interface Module Bracket Bolt
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Communication Interface Module Bracket Nut [2x] Tighten 6N.m (53 lb in) |
| 3 | Communication Interface Module Bracket Procedure
|
