Installation Procedure

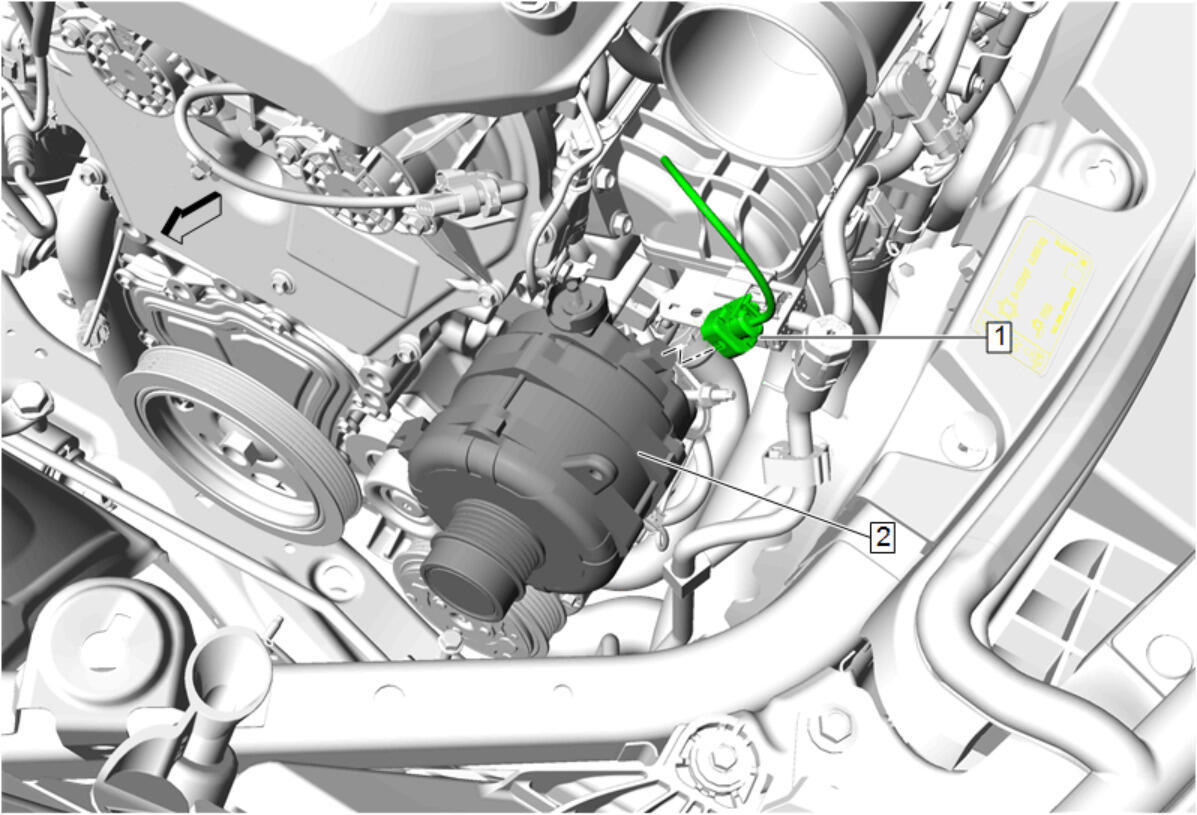

- Electrical Connector (1) - Connect
- Generator (2) - Install
- Generator Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Drive Belt Tensioner (2) - Install - Drive Belt Tensioner Replacement

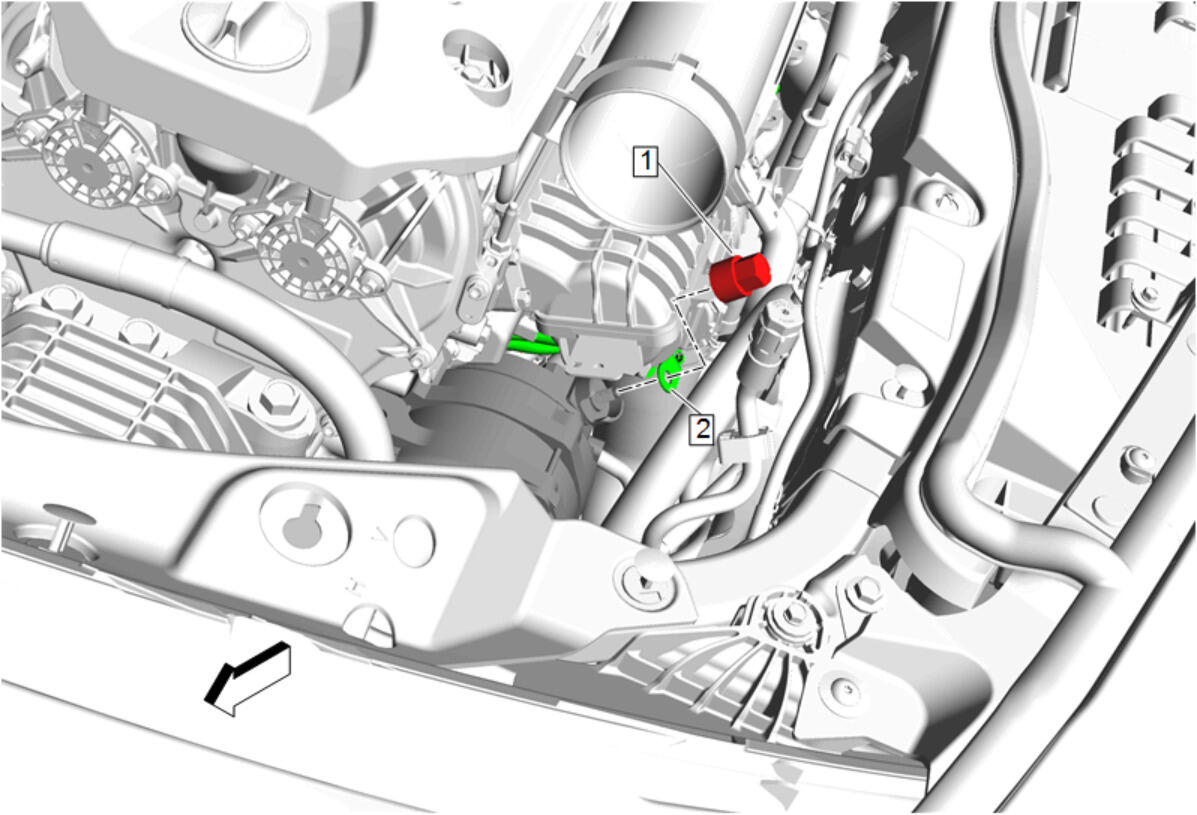

- Battery Positive Cable (2) - Install
- Battery Positive Cable Nut (1) @ Generator - Install and tighten 15 N.m (11 lb ft)

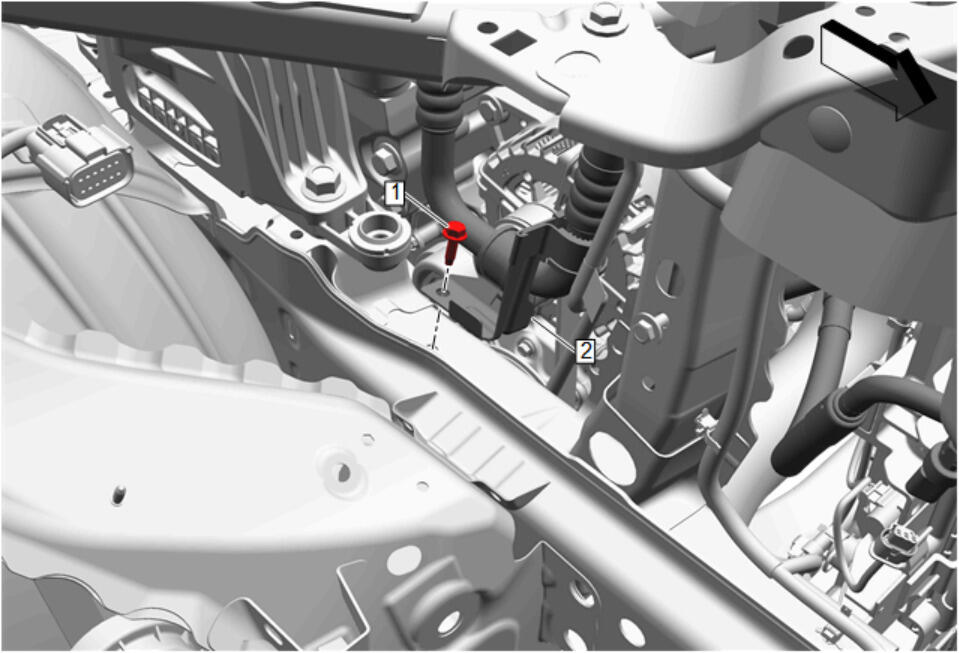

- Install the air conditioning compressor hose bracket bolt (1). Air Conditioning Compressor Hose Replacement

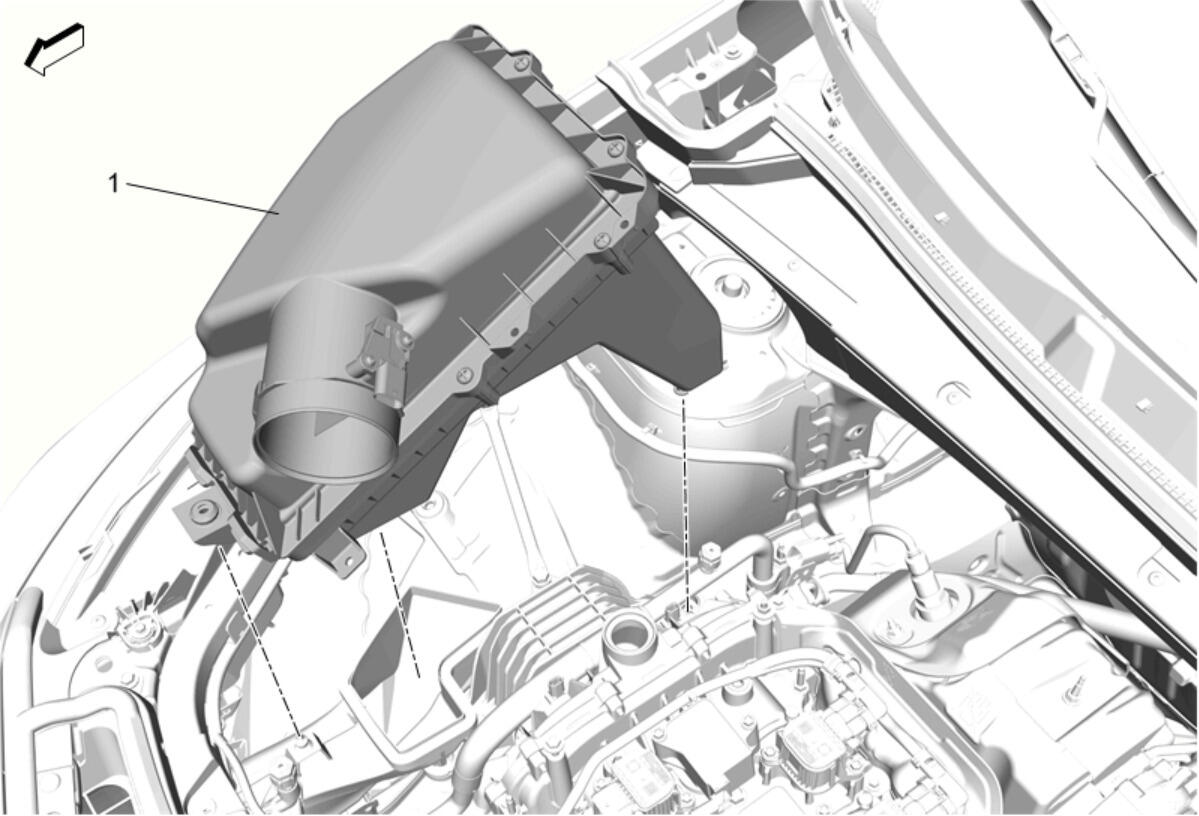

- Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
