Installation Procedure

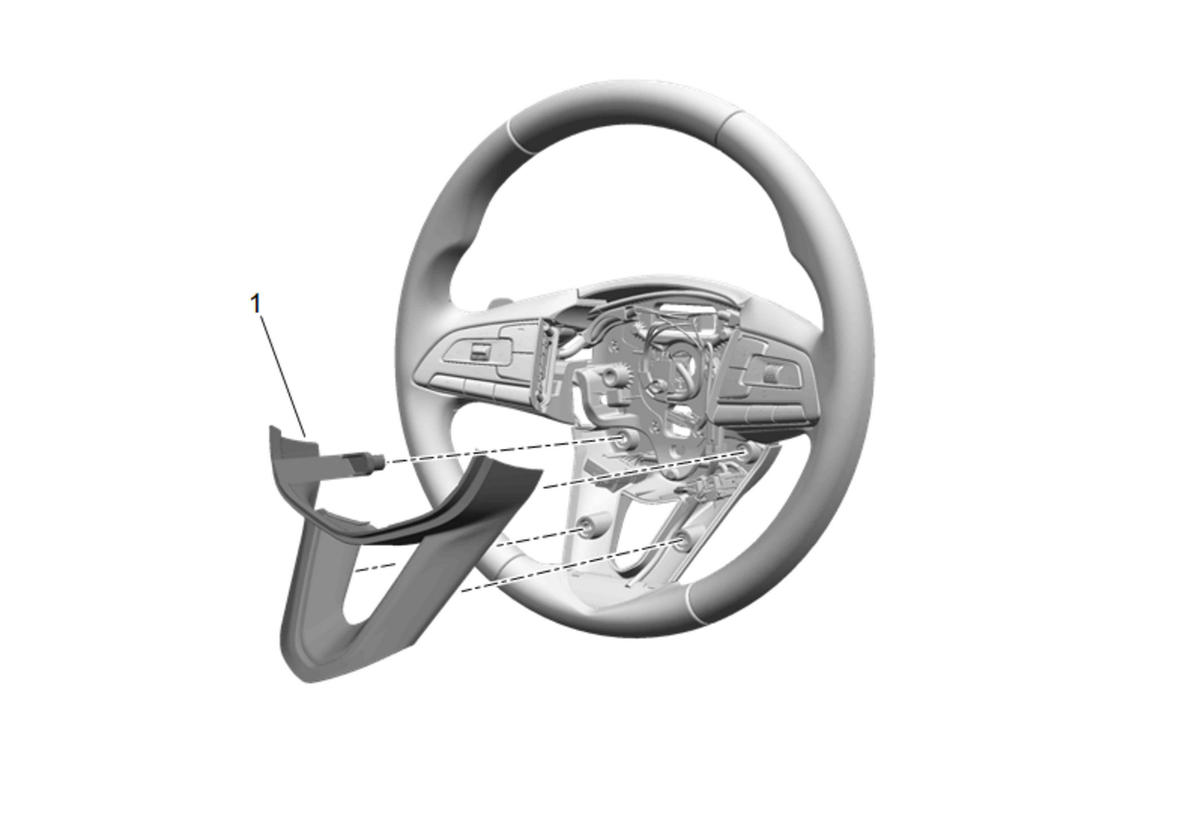

  1. Steering Wheel Spoke Cover (1) - Install
    GM5039450Courtesy of GENERAL MOTORS COMPANY

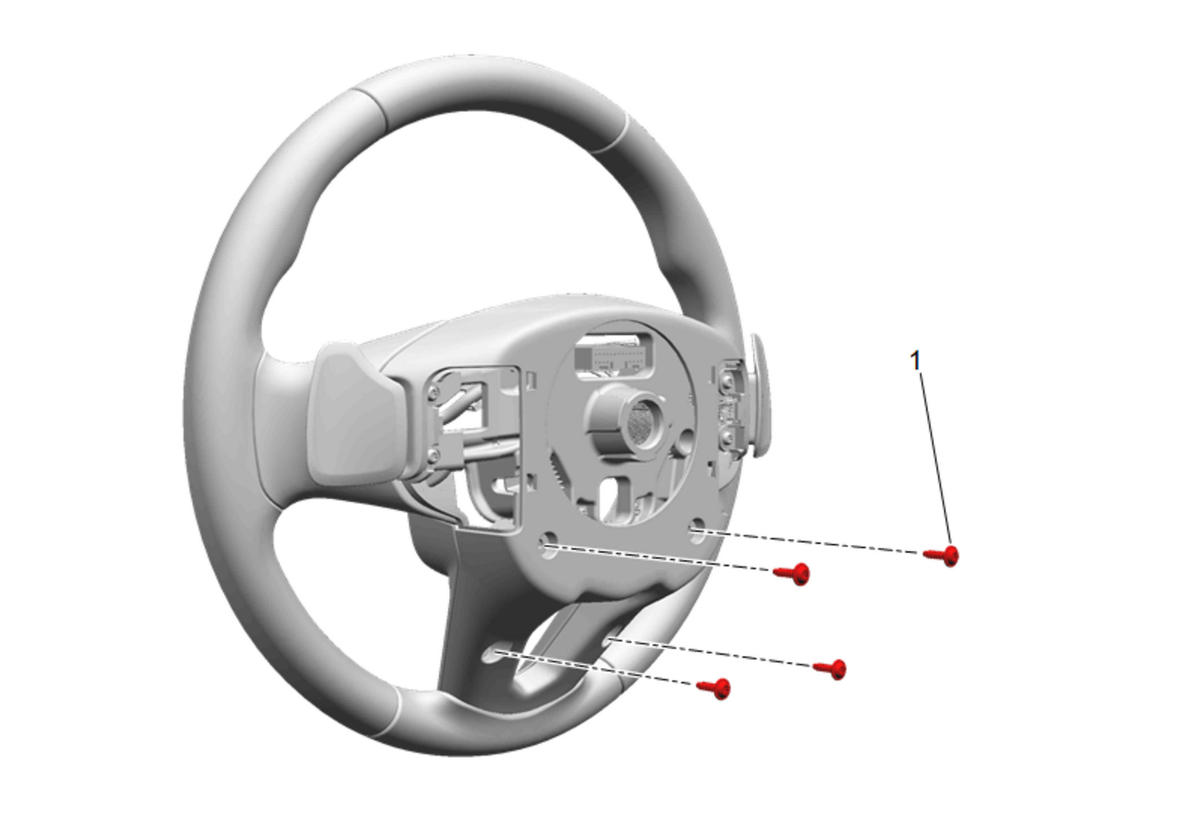

  2. Install the 4 lower steering wheel shroud screws (1). Steering Wheel Shroud Replacement
    GM5039407Courtesy of GENERAL MOTORS COMPANY
  3. Install the steering wheel. (1) Steering Wheel Replacement
    GM5034996Courtesy of GENERAL MOTORS COMPANY
  4. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
  5. Install the steering wheel airbag access hole cover (1). Steering Wheel Airbag Access Hole Cover Replacement
    GM5034932Courtesy of GENERAL MOTORS COMPANY
