Removal Procedure

  1. Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement

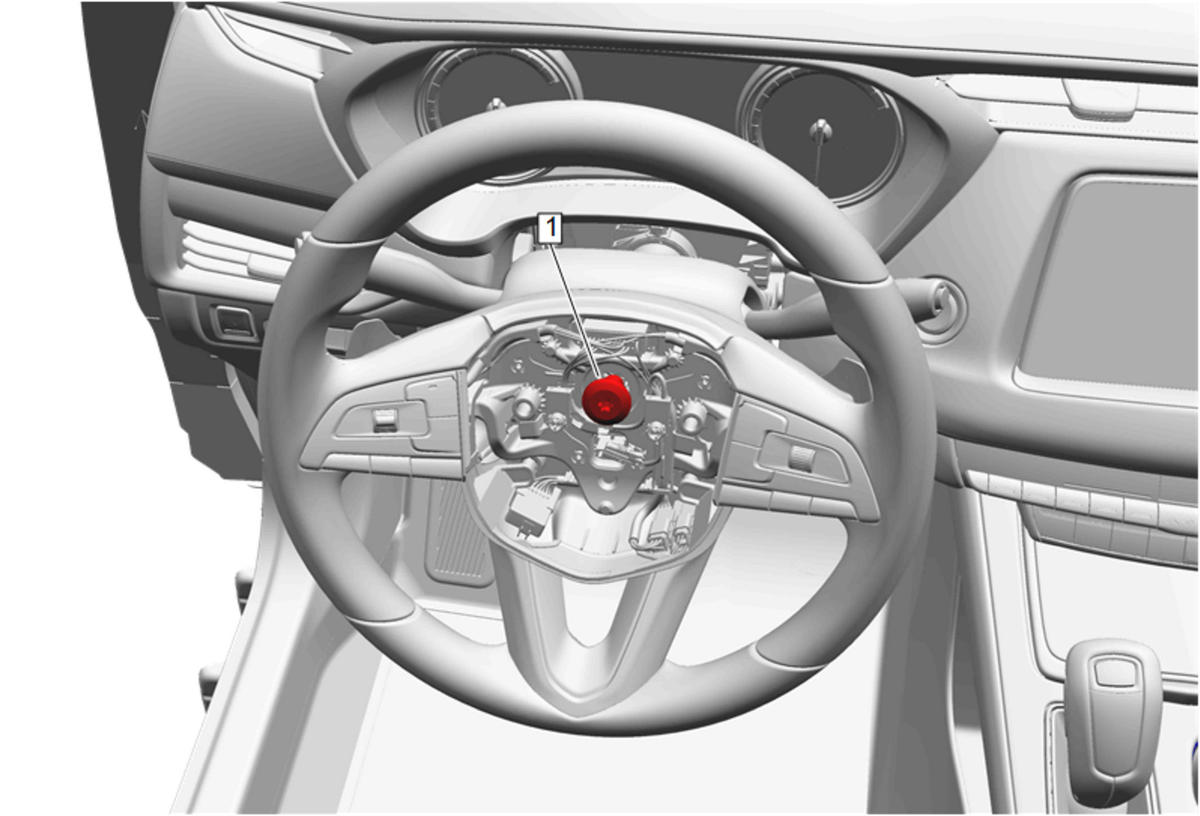

  2. Loosen the steering wheel bolt (1) until 2 to 3 threads are still engaged.
    GM5034947Courtesy of GENERAL MOTORS COMPANY
  3. Wiggle the steering wheel until the wheel disengages completely.
  4. Steering Wheel Bolt (1) - Remove
    GM5034954Courtesy of GENERAL MOTORS COMPANY
  5. Remove the steering wheel. (1)
    GM5034996Courtesy of GENERAL MOTORS COMPANY
  6. Transfer components as necessary.
