Radio Control Assembly Replacement
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

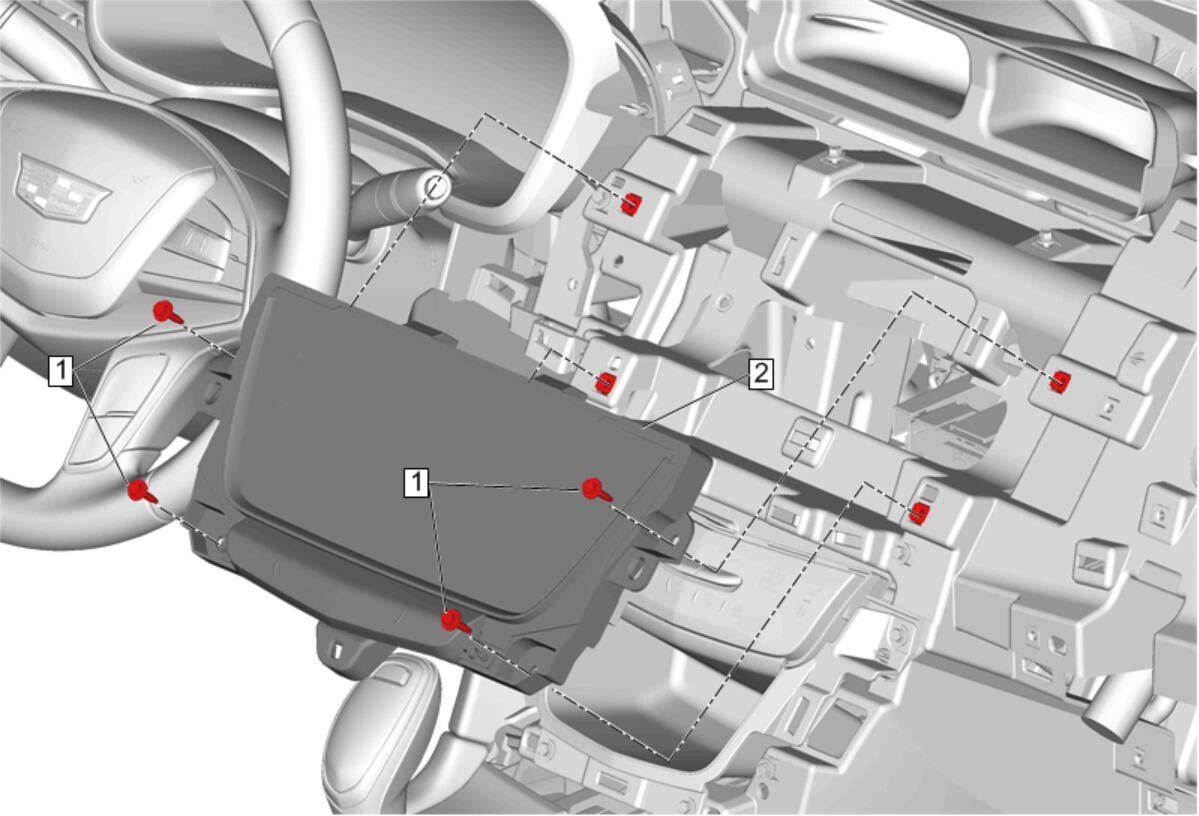

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Upper Trim Panel Replacement |
|
| 1 | Radio Control Bolt[4x]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Control Assembly Procedure
|
