Home › Cadillac › 2019 › XT5 Base, FWD › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Defogger Wiring Schematics › Defogger

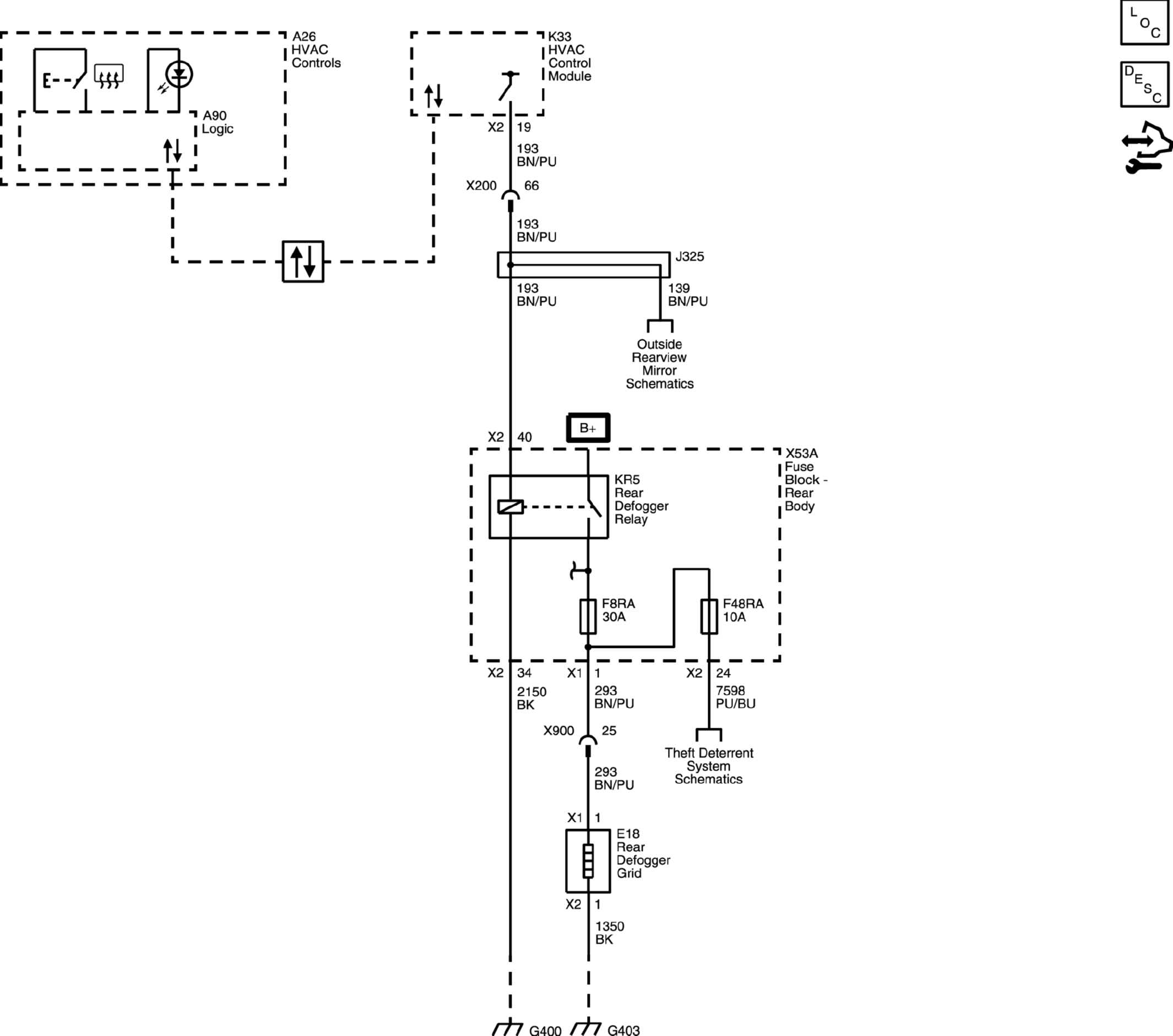

Defogger Wiring Schematics: Defogger

GM4909846Courtesy of GENERAL MOTORS COMPANY
