Intake Air Splash Shield Replacement

Courtesy of GENERAL MOTORS COMPANY

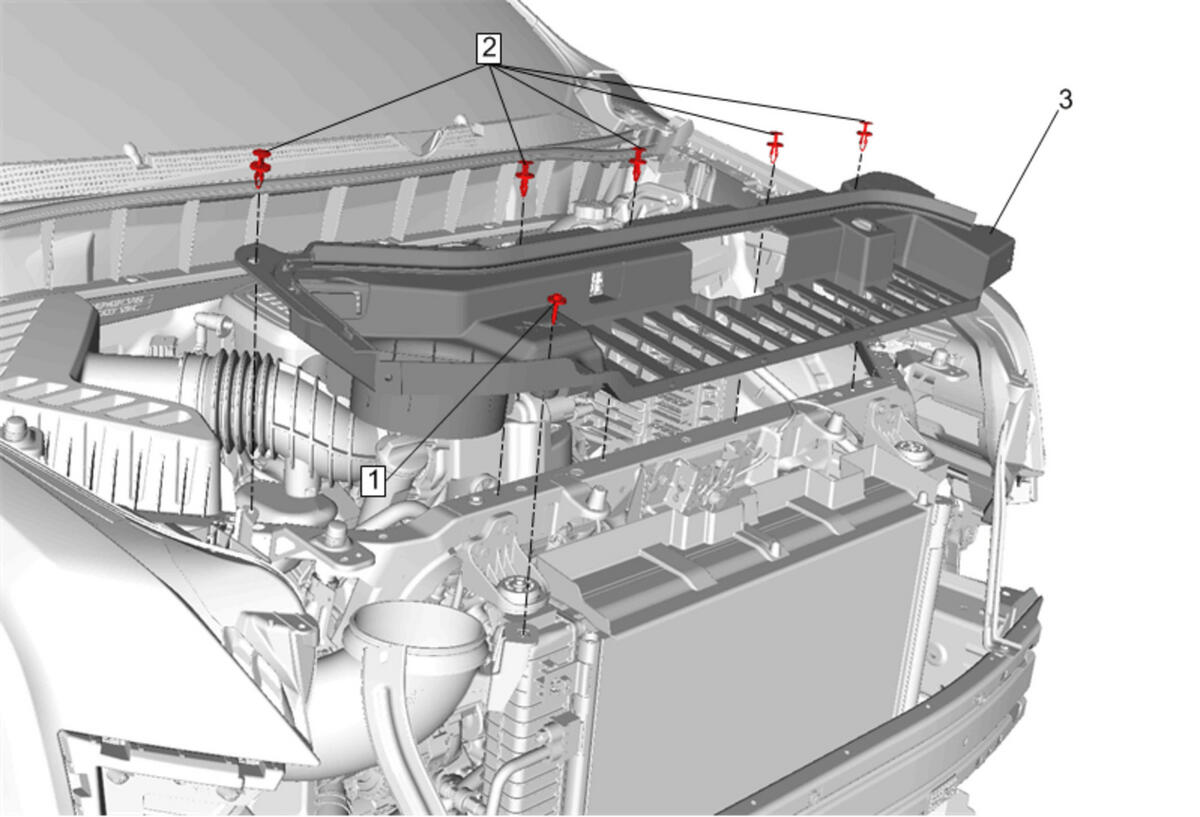

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Center Support Replacement Radiator Air Upper Baffle and Deflector Replacement (LGX)
1	Intake Air Duct Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Intake Air Splash Shield Retainer [5x]
3	Intake Air Splash Shield
