Audio Disc Player and USB Receptacle Replacement
WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
Preliminary Procedure
Front Floor Console Armrest - Open |
| 1 |

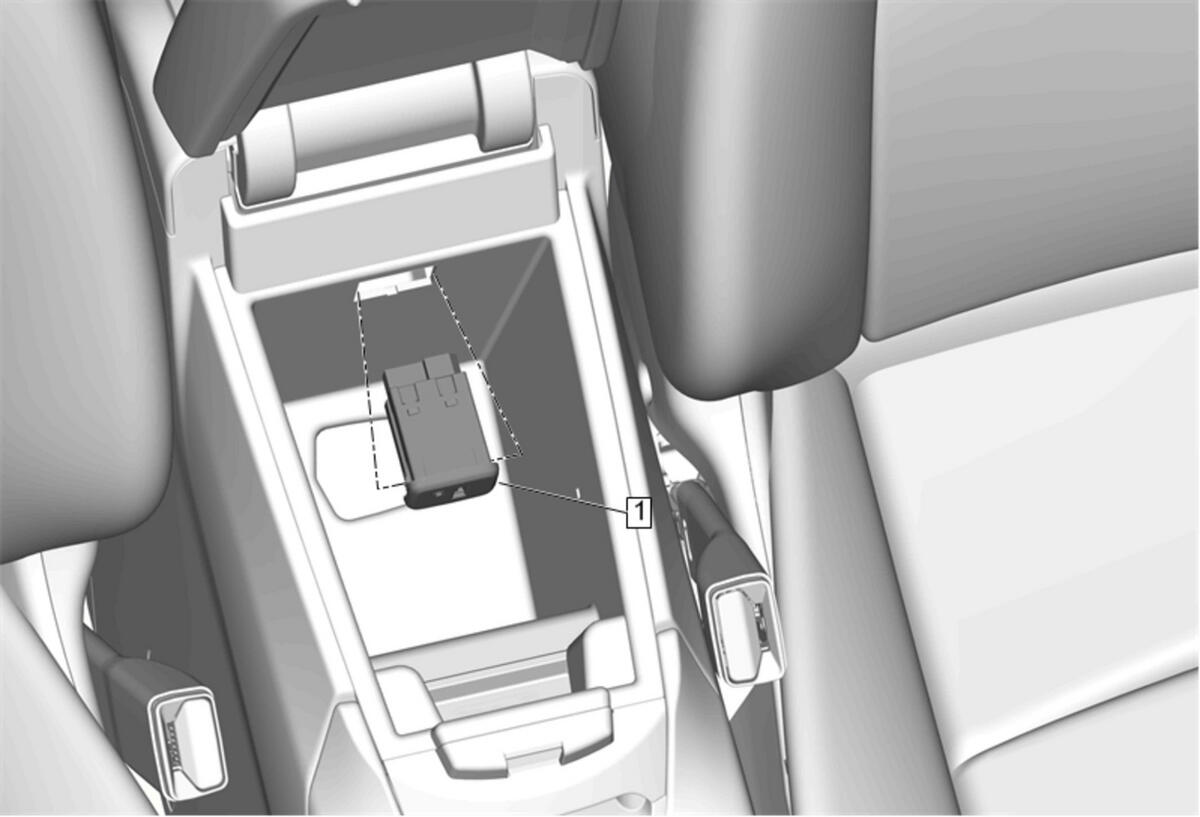

Audio Disc Player and USB Receptacle Procedure
- Use a flat bladed plastic tool to remove.
- Disconnect the electrical connector.
|
