Headlamp Control Module Bracket Replacement

WARNING: This page is about a different car, the 2018 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

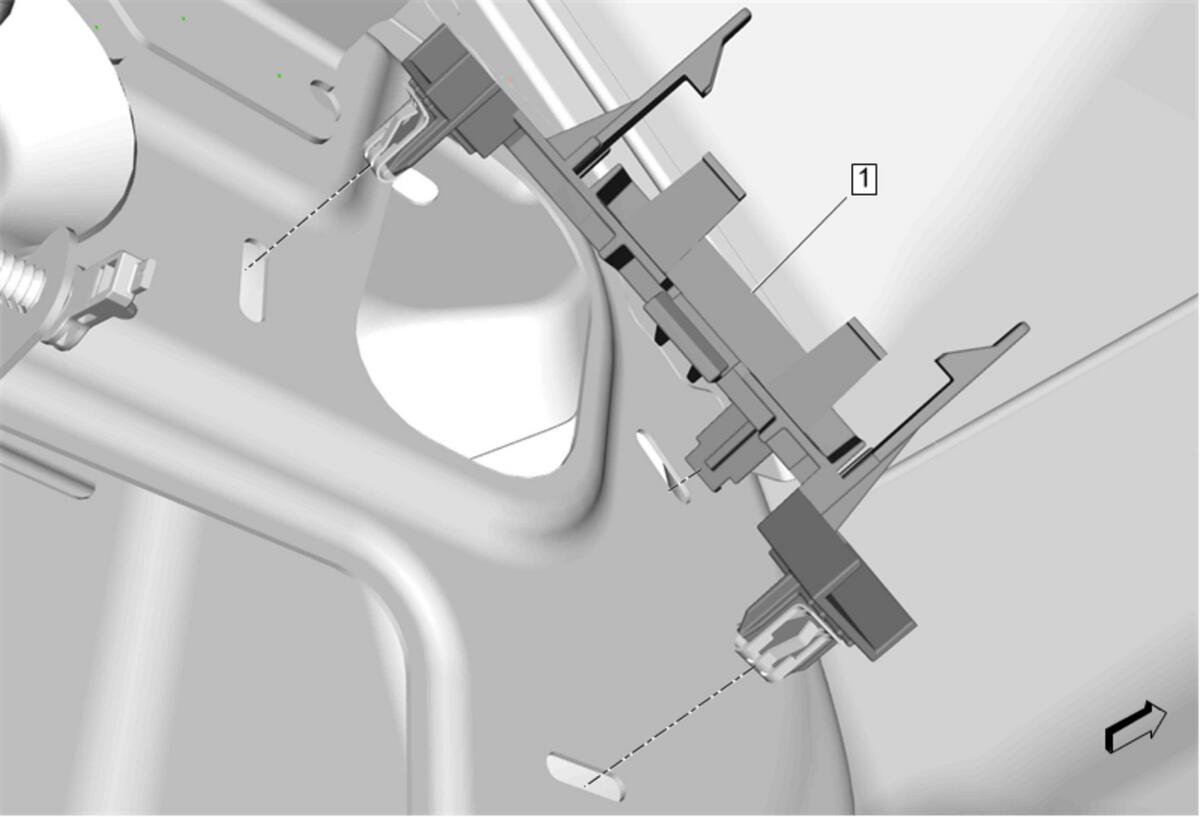

Callout	Component Name
Preliminary Procedure Headlamp Control Module Replacement
1	Headlamp Control Module Bracket Procedure Release the retaining tabs. Tilt the bottom of the bracket away from the frame, slide the bracket downward to remove.

Callout

Component Name

Preliminary Procedure
Headlamp Control Module Replacement

Headlamp Control Module Bracket

Procedure

Release the retaining tabs.
Tilt the bottom of the bracket away from the frame, slide the bracket downward to remove.
