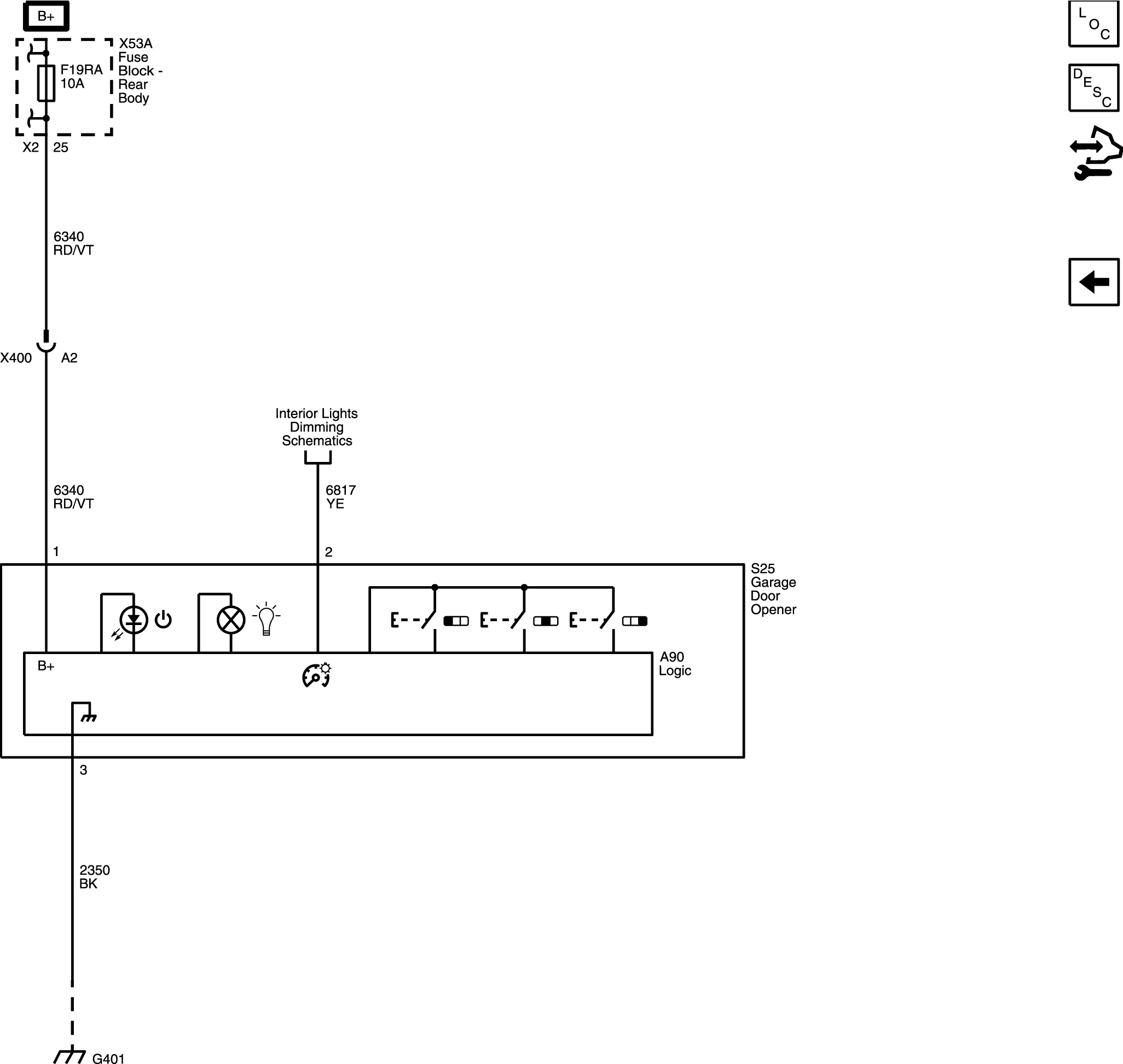

Home › Cadillac › 2019 › XTS Base › Repair and Diagnosis › Body & Frame › Door Locks › Remote Functions System › Schematic Wiring Diagrams › Remote Function System Wiring Schematics › Garage Door Opener
