Remote Function System Wiring Schematics
›

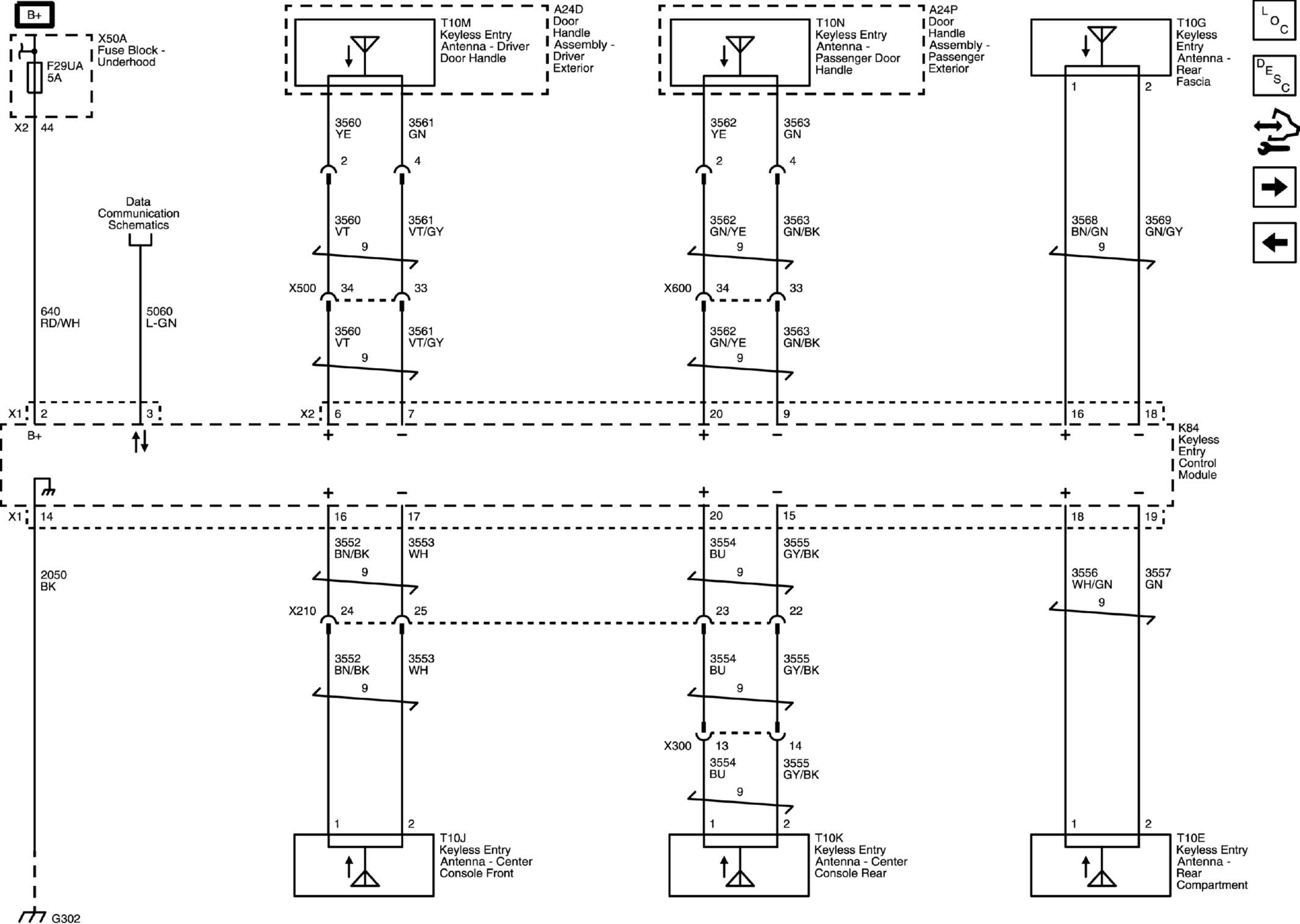

Keyless Entry - Passive and Keyless Start
Keyless Entry - Passive and Keyless Start
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
