Short Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2018 Cadillac XTS. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Rear Bumper Energy Absorber Replacement

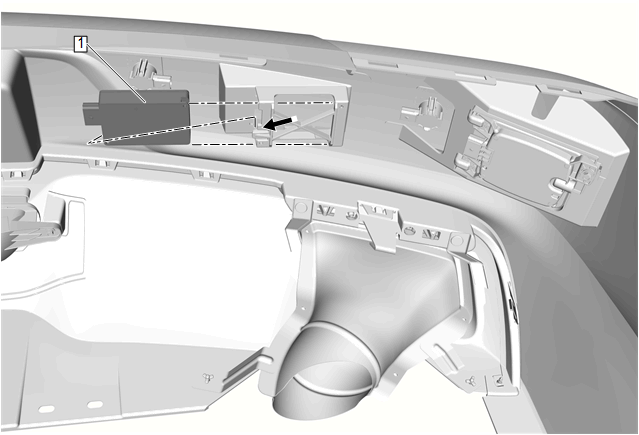

1	Short Range Radar Sensor Procedure Disconnect the electrical connector. Release the tab retainer and remove. Perform the necessary programming and setup procedure: Control Module References .

Callout

Component Name

Preliminary Procedure
Rear Bumper Energy Absorber Replacement

Short Range Radar Sensor

Procedure

Disconnect the electrical connector.
Release the tab retainer and remove.
Perform the necessary programming and setup procedure: Control Module References .
