Steering Wheel Spoke Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

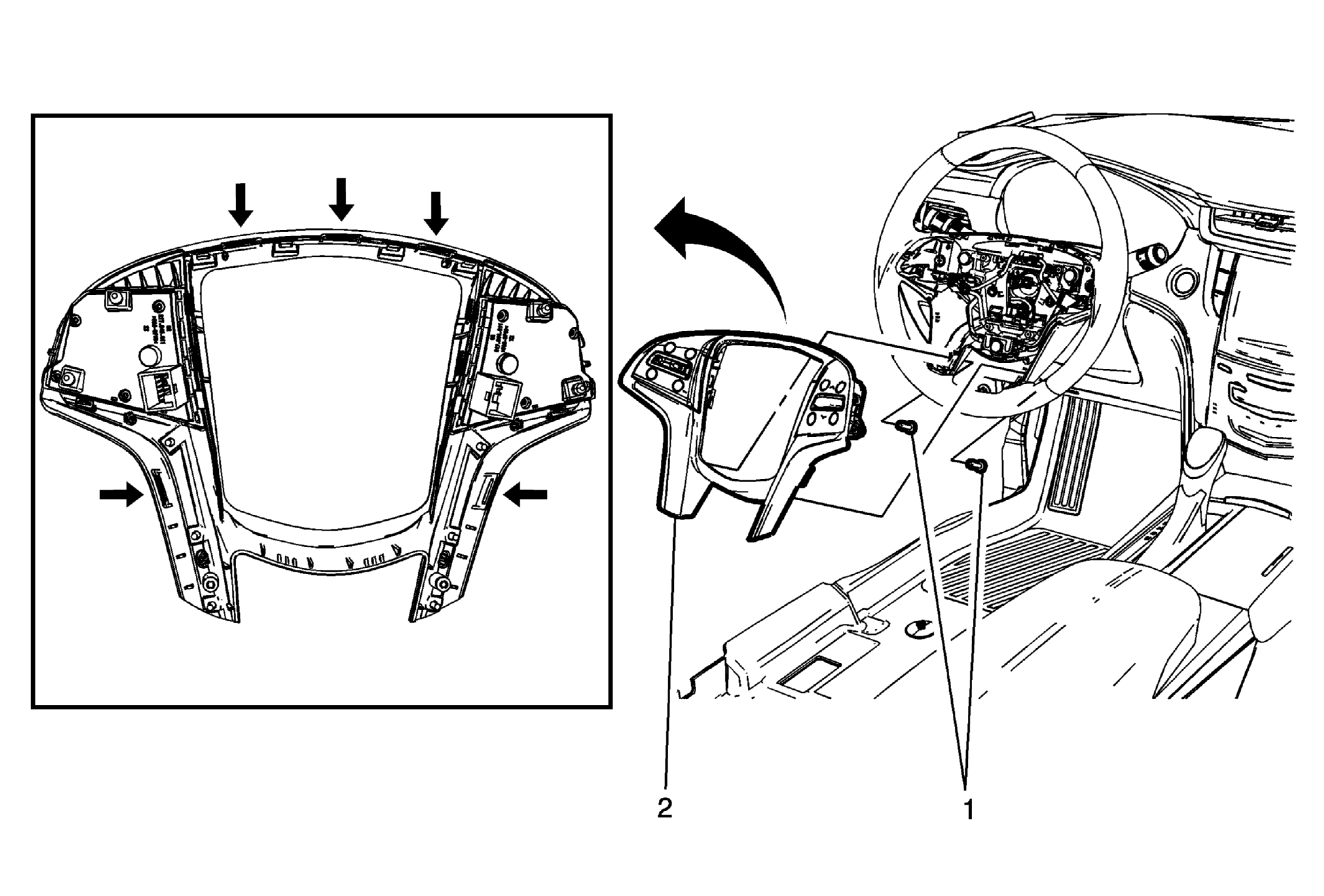

Callout	Component Name
Preliminary Procedure Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .
1	Steering Wheel Spoke Cover Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Steering Wheel Spoke Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off. Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedure
Remove the steering wheel airbag. Refer to Steering Wheel Airbag Replacement .

Steering Wheel Spoke Cover Fasteners (Qty: 2)

CAUTION:

Steering Wheel Spoke Cover

Procedure

Use the appropriate tool to gently release the retaining tabs on the cover.
NOTE:
Gently release tabs one by one, using care to avoid snapping the tab off.
Disconnect the electrical connections.
