X50D Battery Distribution Fuse Block X3
 Courtesy of GENERAL MOTORS COMPANY
|

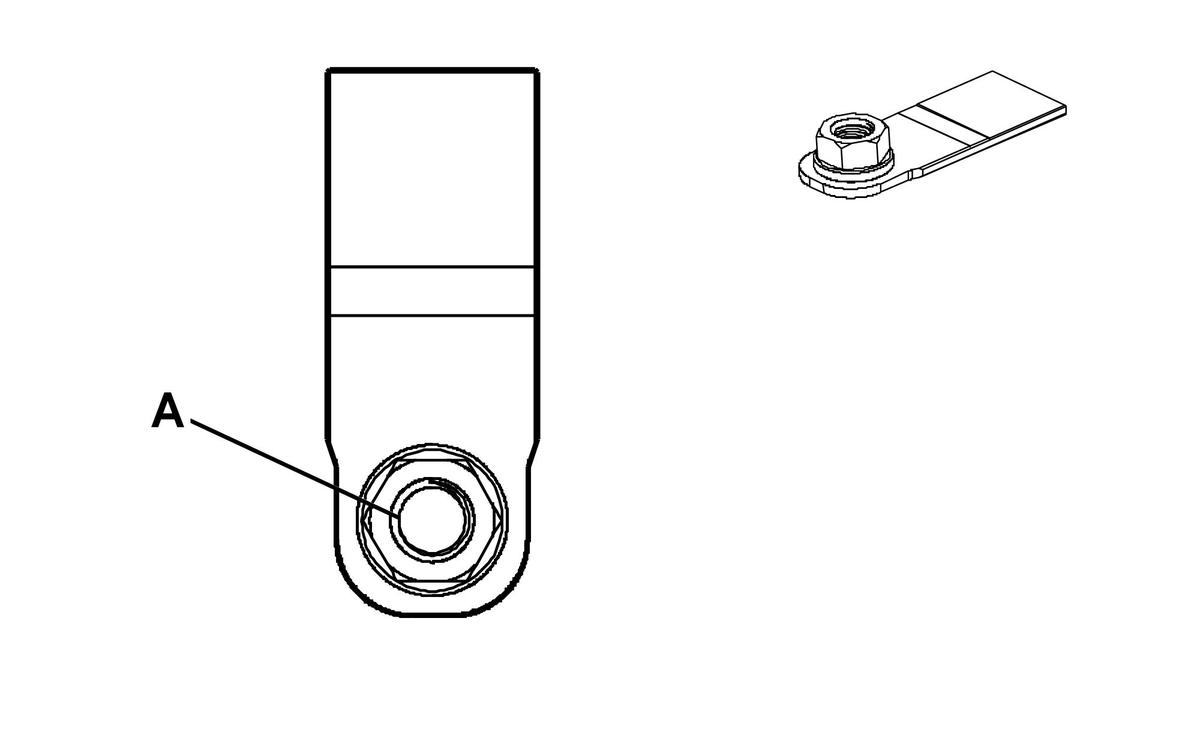

Connector Part Information
- Harness Type: Battery Positive Body
- OEM Connector: E12949500
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 1-Way Ring Terminal
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
70 |
RD/YE |
442 |
Primary Fused Battery Positive Voltage 4 |
I |
- |
