Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

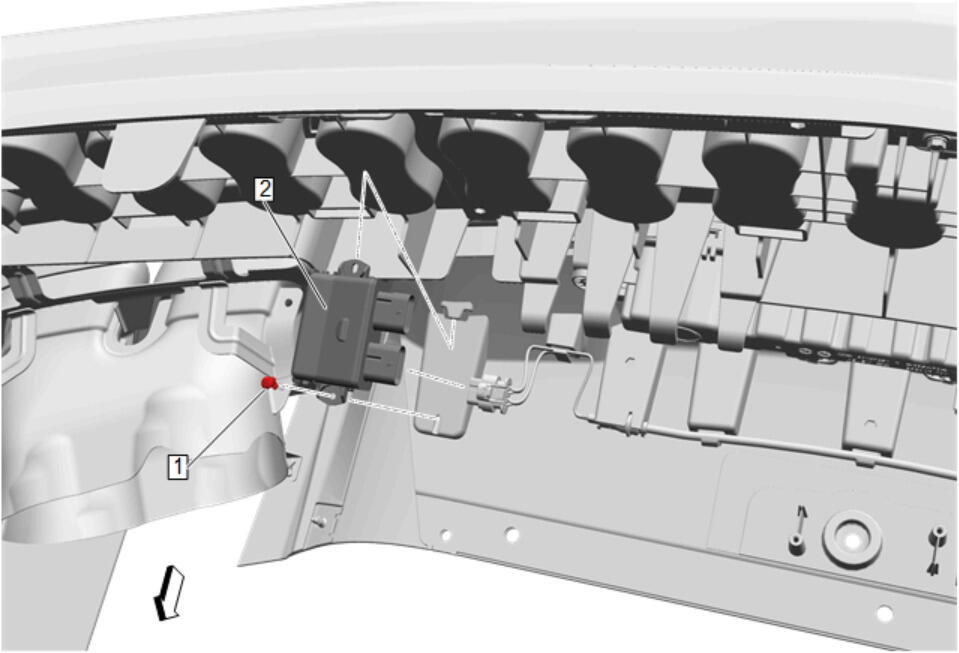

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Rear Bumper Fascia Removal and Installation
1	Rear Closure Hands Free Module Rivet Procedure  Drill out the rivet.
2	Rear Closure Hands Free Module Procedure  Disconnect the electrical connectors.
