Remote Function Wiring Schematics
›

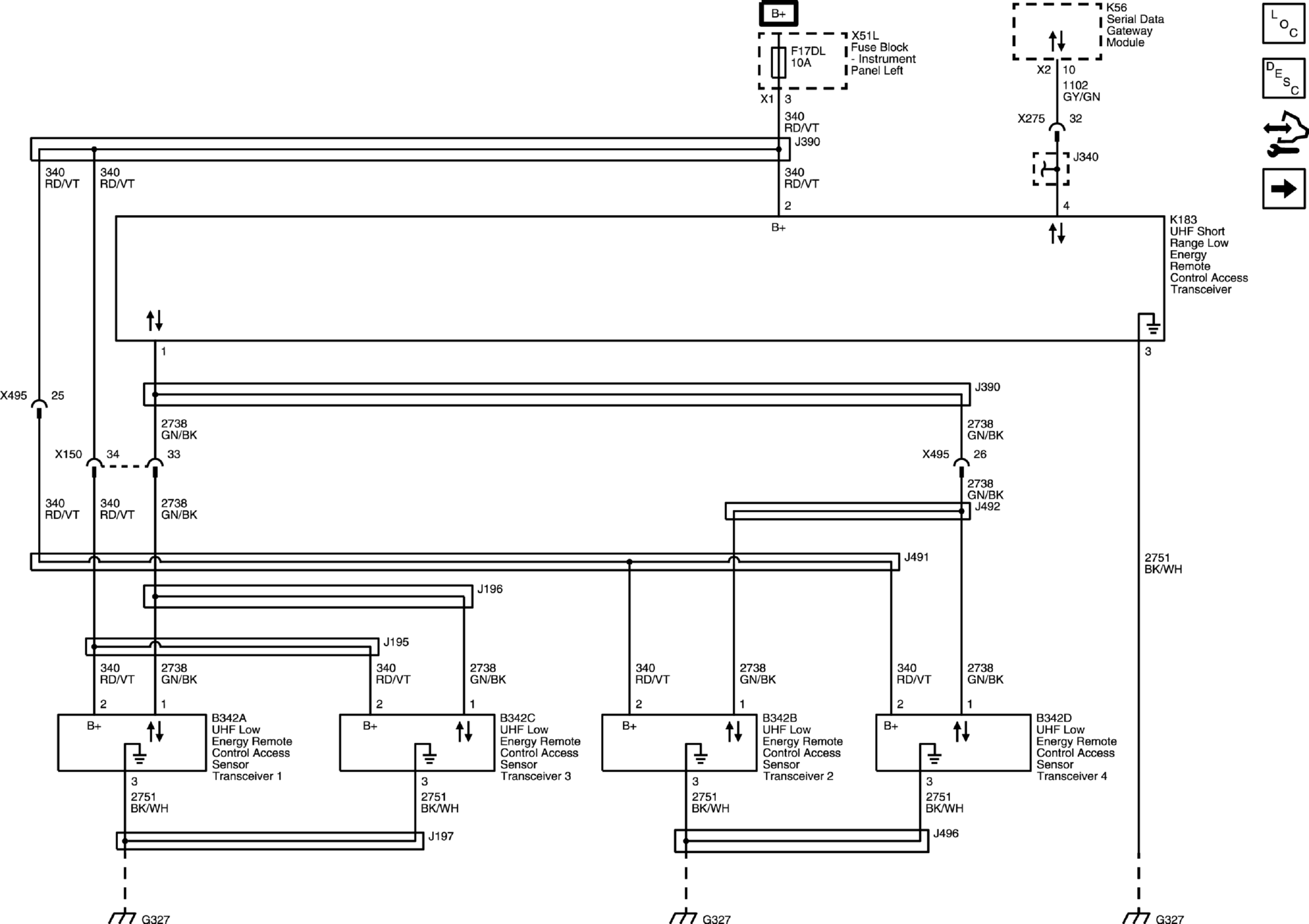

Keyless Entry - Virtual Key (BOP)
Keyless Entry - Virtual Key (BOP)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
